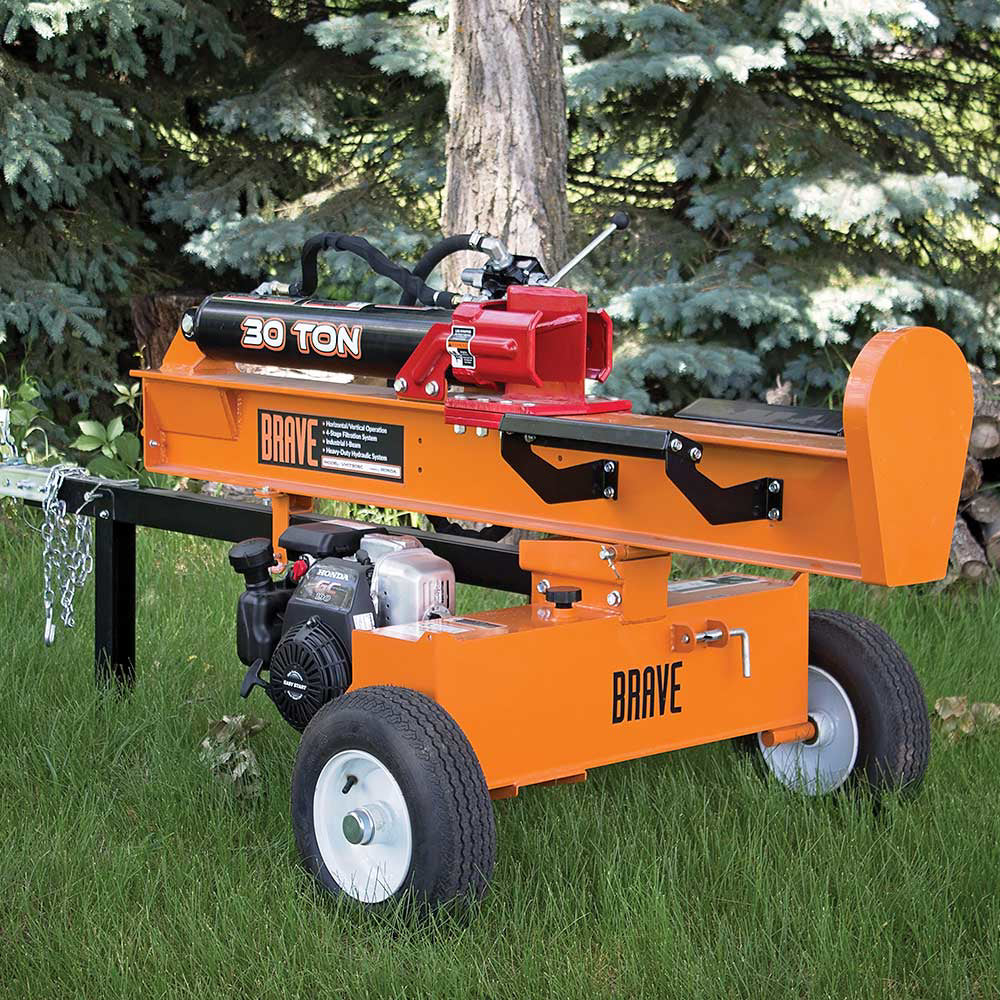

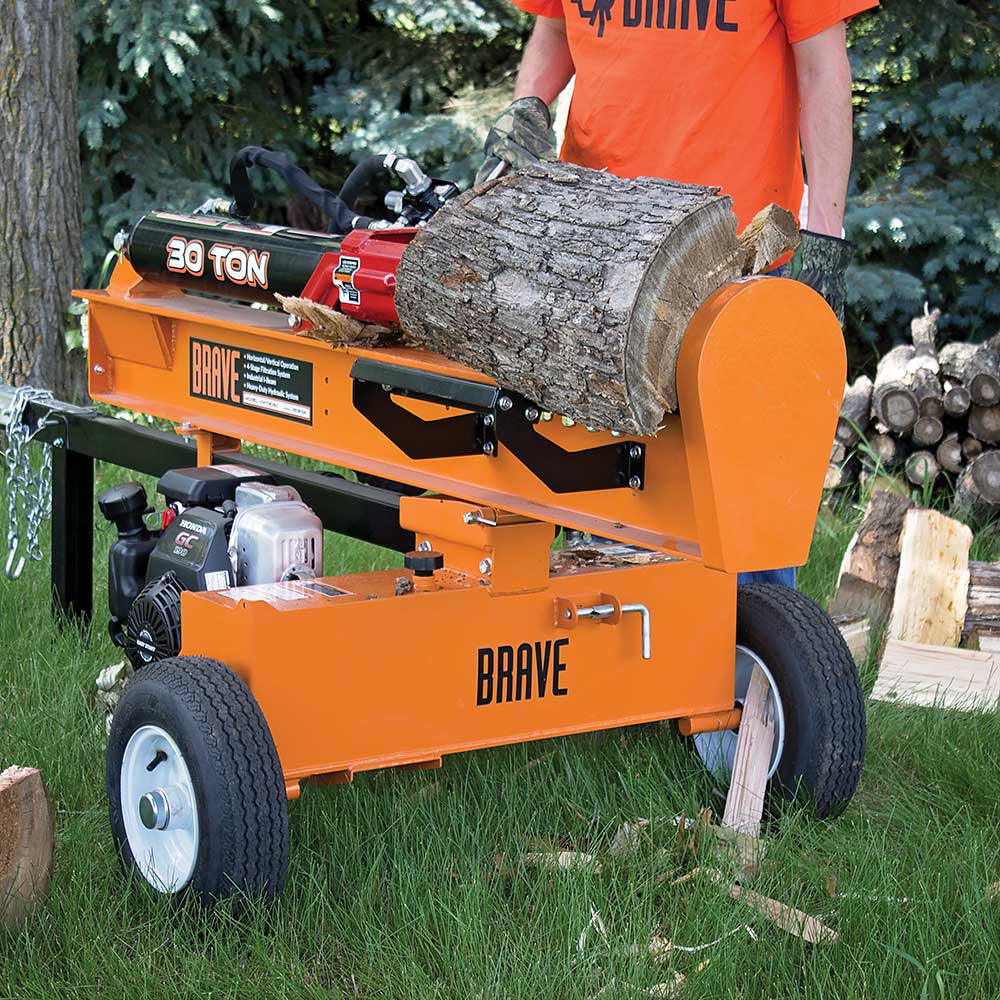

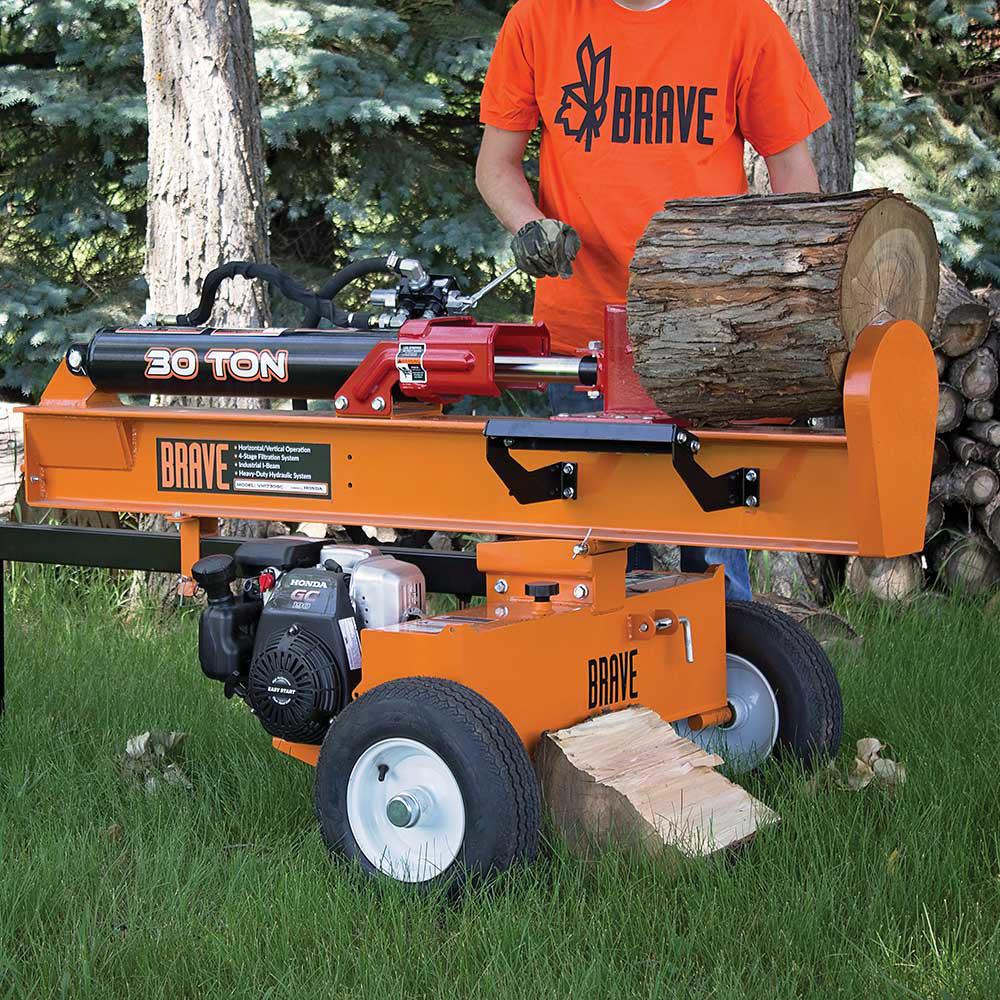

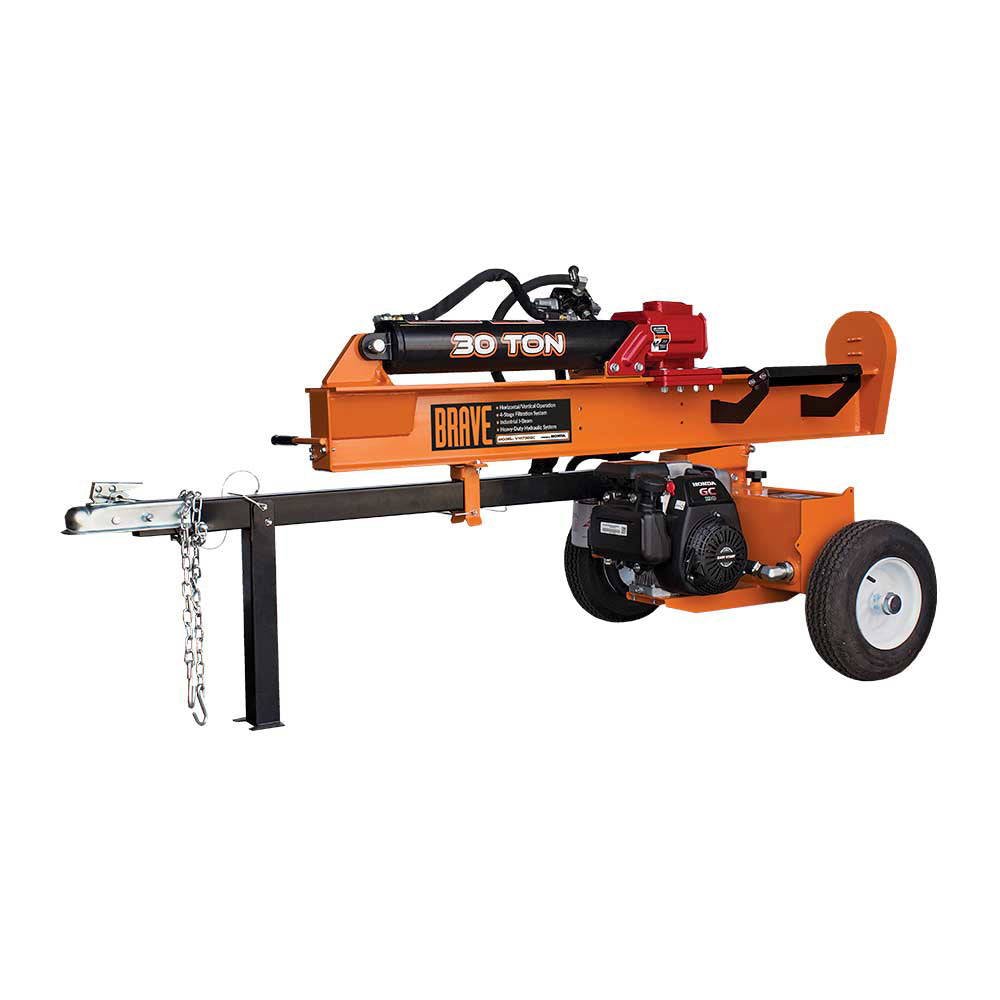

The Brave VH1730GC steps up to 30 tons of splitting force with a larger 4.5 in. x 24 in. cylinder, 13 GPM 2-stage pump, and Honda GC190 engine. Built on the same industrial I-beam platform as the 24-ton model, it handles logs up to 16 inches in diameter in both horizontal and vertical positions. Tow-ready up to 45 MPH with highway-rated tires and 2-in. ball hitch. Sherwin-Williams powder coat finish throughout.
Specifications
- Equipment Type: Log Splitter (Tow-Behind)
- Splitting Force: 30 tons
- Operation: Horizontal and Vertical

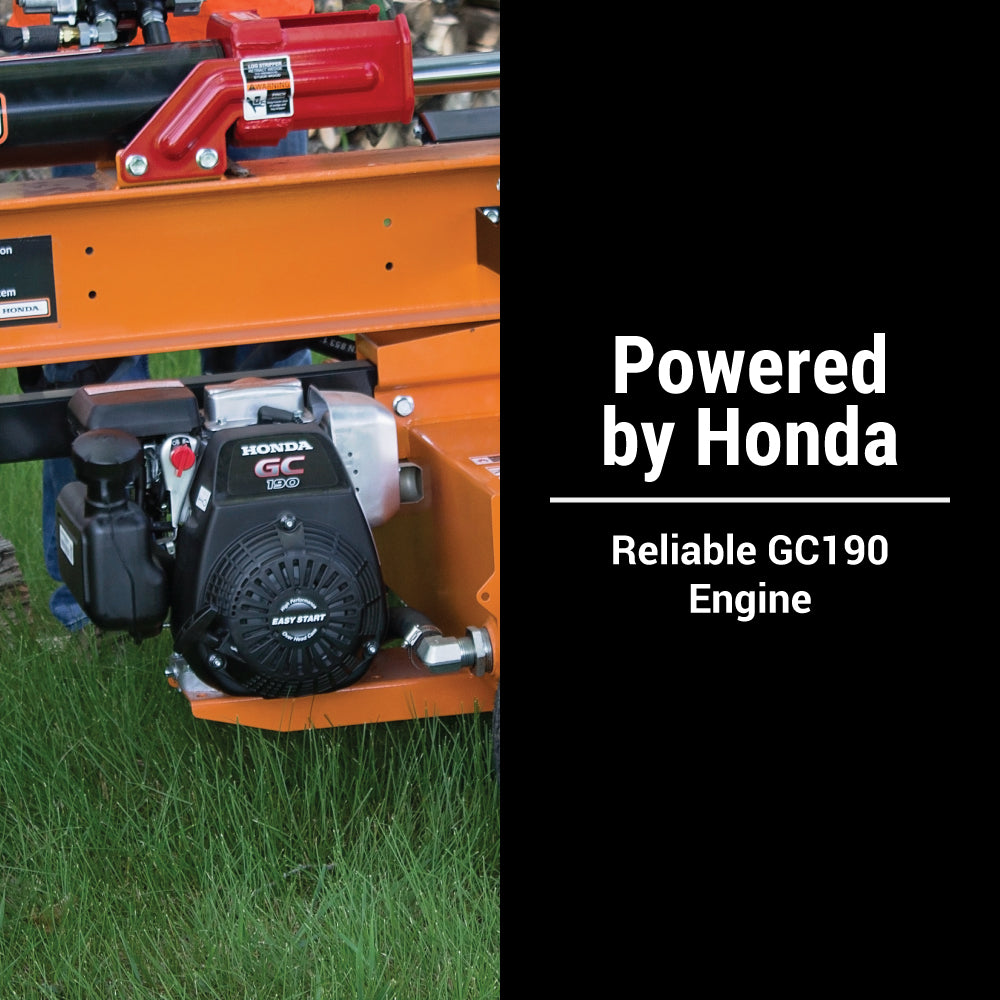

- Engine: Honda GC190 — 189cc displacement
- Cycle Time: 14 seconds
- Pump: 13 GPM 2-stage
- Cylinder: 4.5 in. x 24 in. clevis type, 2-in. rod
- Wedge: 8 in. high carbon steel
- Splitting Height: 30 in.
- Max Log Diameter: 16 in.
- Max Log Length: 25 in.
- Hydraulic Capacity: 8.5 gal.
- Fuel Capacity: 0.5 gal.
- PSI: 3,500
- Hitch: 2 in. ball
- Towing Speed: 45 MPH max
- Dry Weight: 525 lbs.
- Log Cradle: Yes
- Fenders: Optional
- SKU: VH1730GC

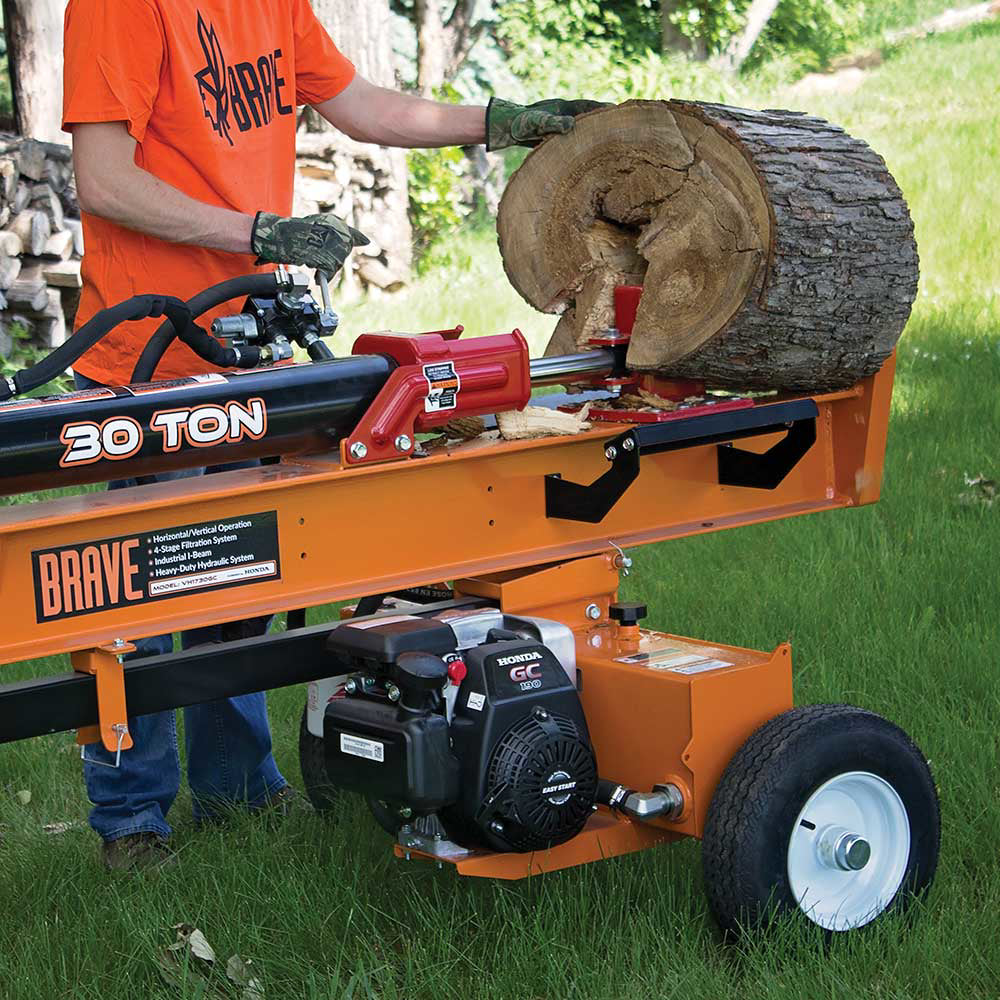

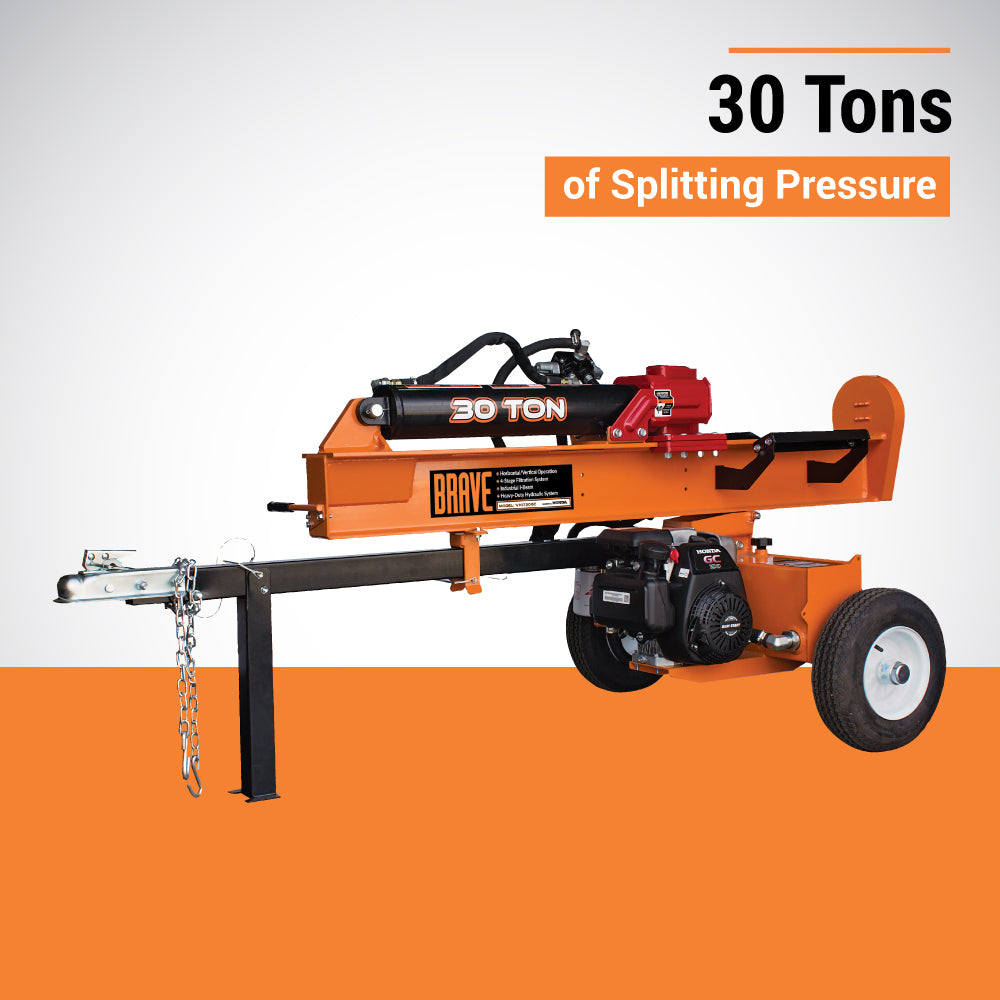

30 Tons — For Large Diameter Hardwood
The step from 24 to 30 tons is felt on dense hardwood species — oak, hickory, elm — where the extra force pushes through cross-grain and knotted wood that would stall a lighter machine. The larger 4.5 in. cylinder bore delivers more force at the same 3,500 PSI, while the upgraded 13 GPM pump maintains cycle consistency under heavy load. The unique high-performance wedge design is optimized for efficient splitting rather than brute force — cleaner splits, less wasted energy per cycle.
4-Stage Hydraulic Filtration + O-Ring Fittings
The VH1730GC runs the same 4-stage hydraulic filtration system as the 24-ton model — suction strainer, breather cap air filter, return line filter, and magnetic drain plug. O-ring fittings on the control valve replace standard threaded fittings, making assembly easier and reducing the leak points that cause hydraulic fluid loss over time. Industrial cylinder with Halite seals maintains constant splitting pressure throughout the cycle.

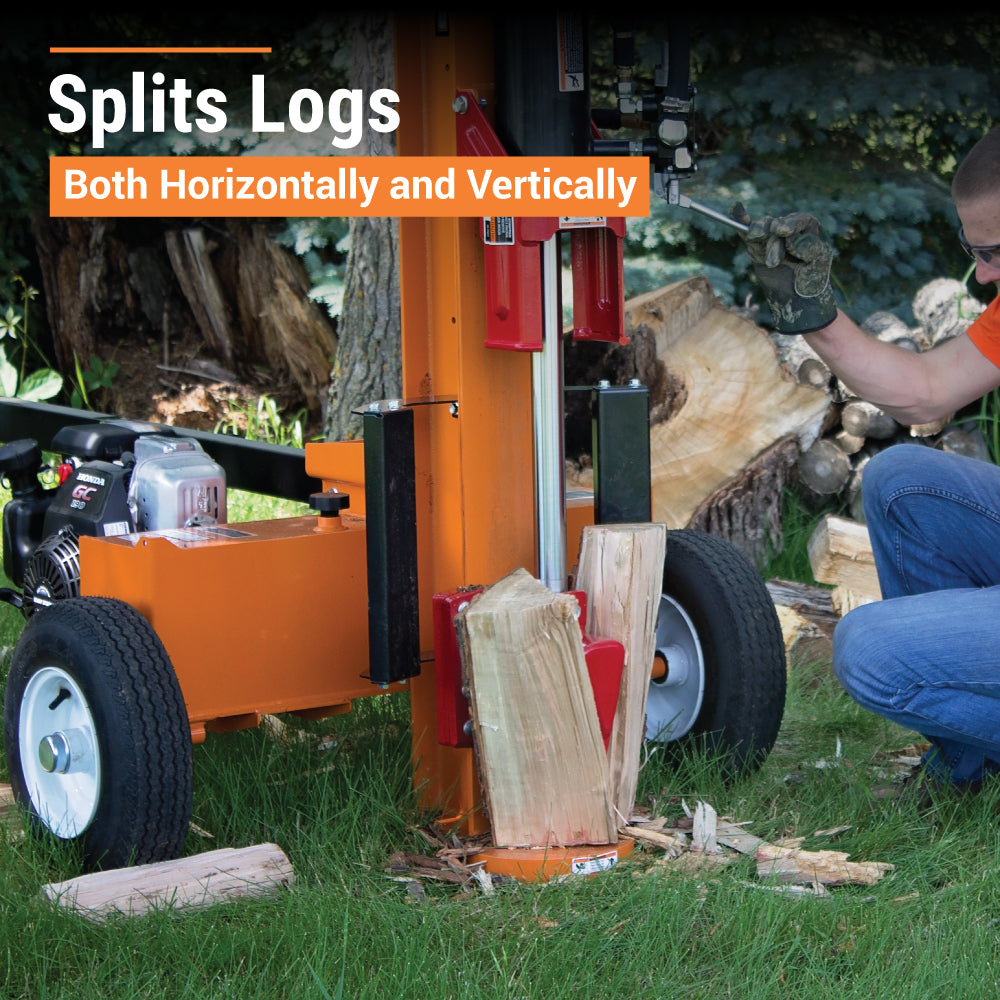

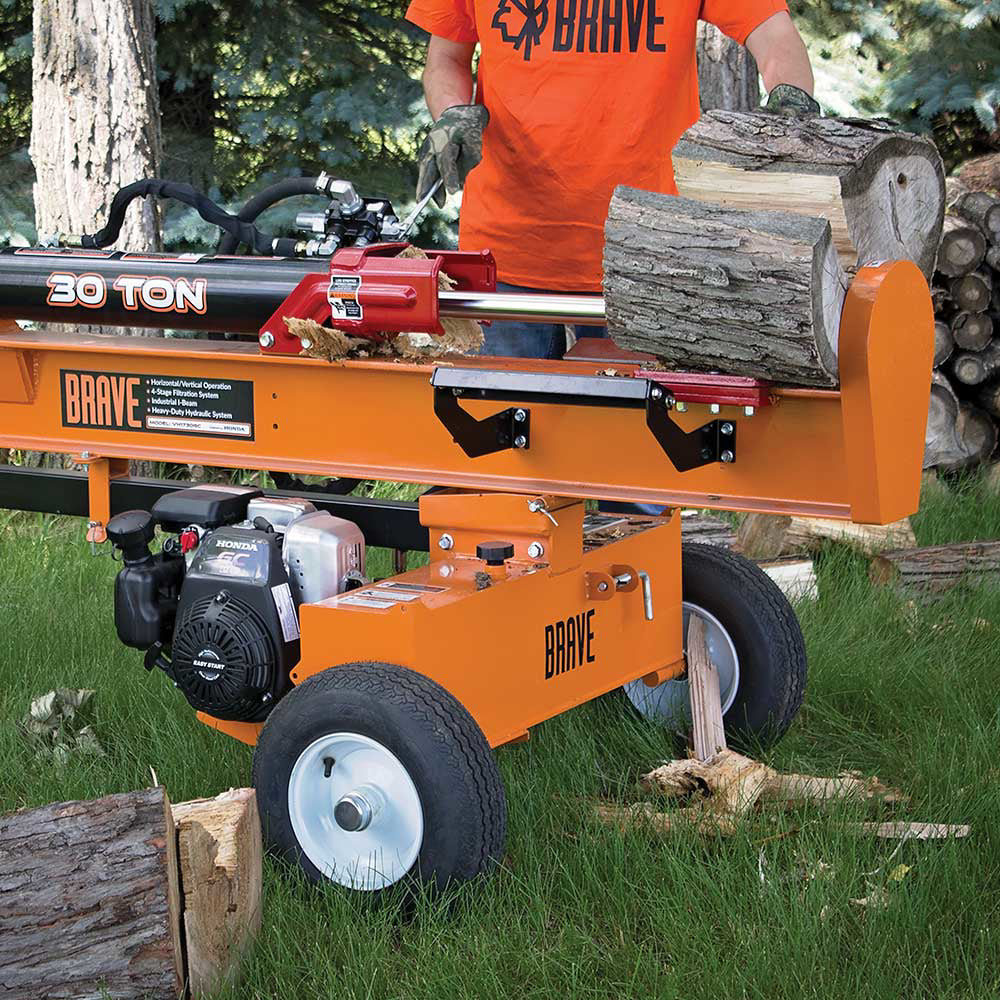

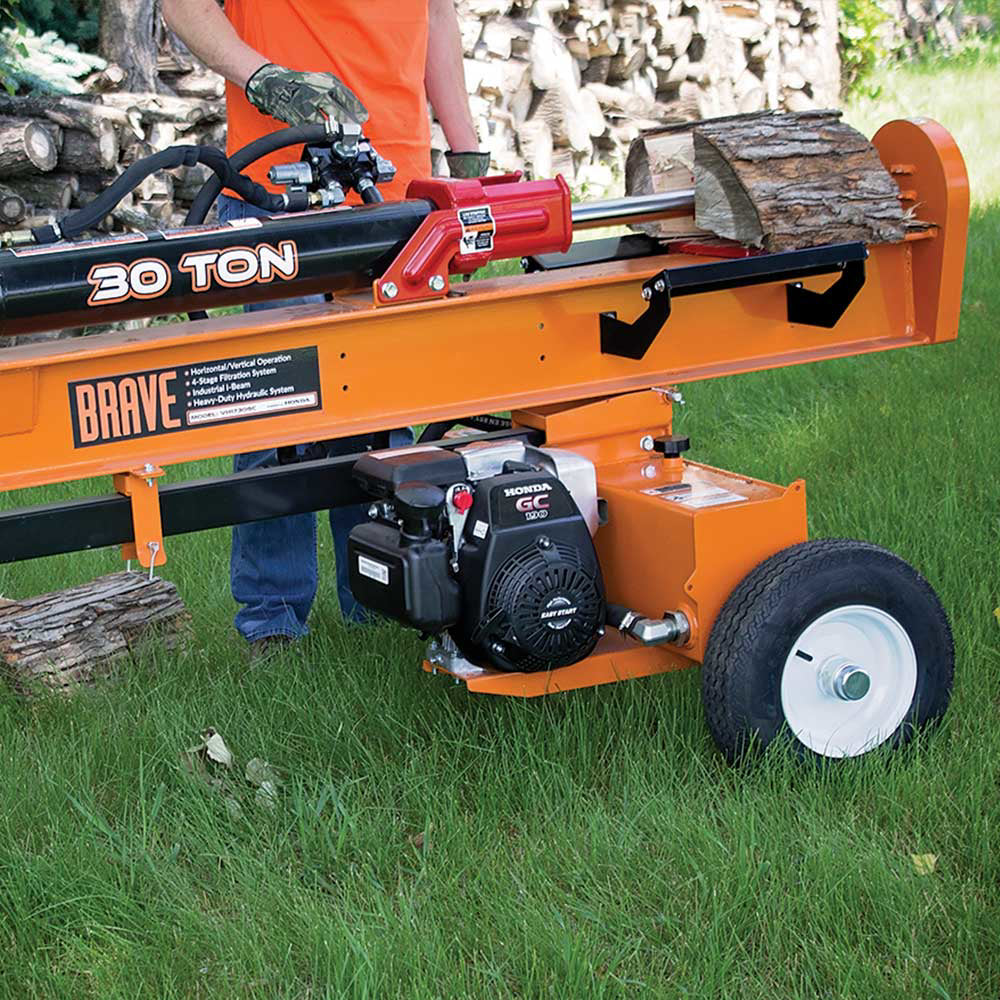

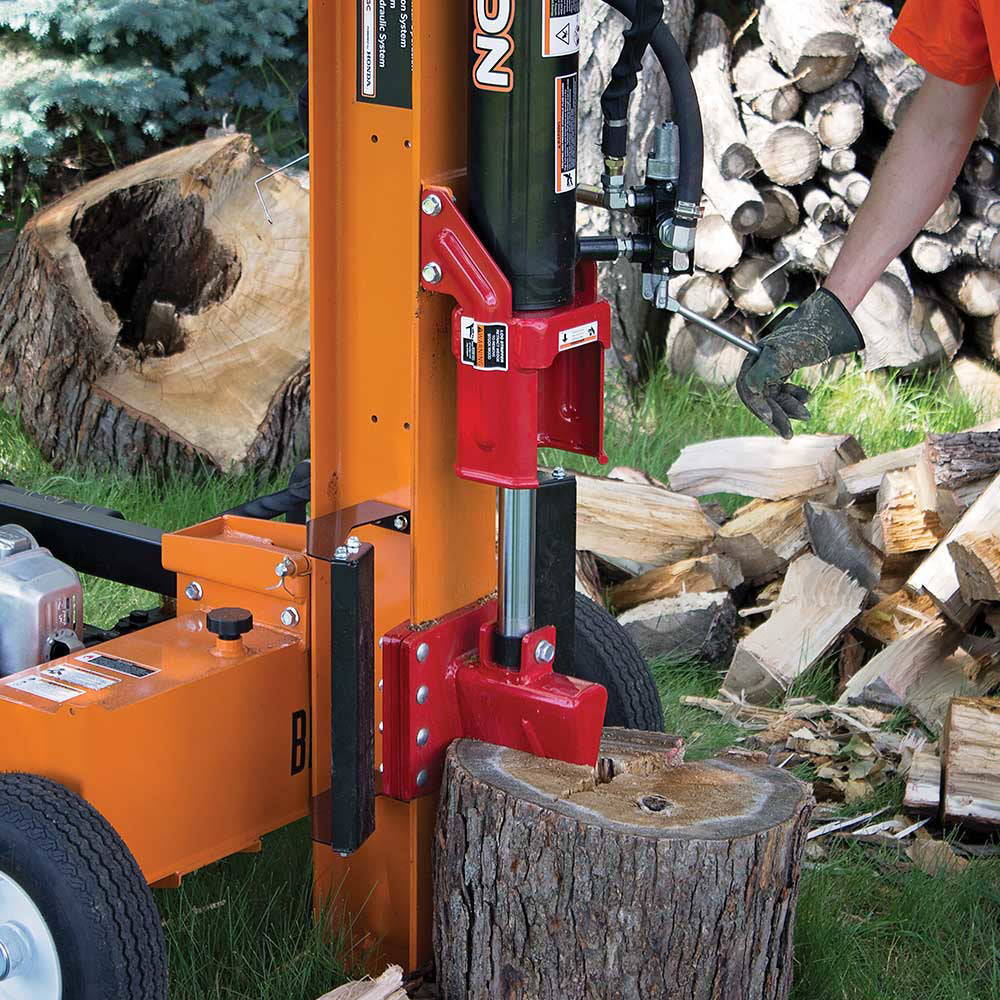

Horizontal & Vertical Operation
The lift handle allows fast transitions between horizontal and vertical positions. Split ground-level rounds vertically without lifting — critical for large, heavy logs where manual repositioning creates injury risk. Log cradles catch split pieces and serve as a work table. The heavy-duty log dislodger ejects stuck logs automatically, protecting the control valve and hydraulic components from damage caused by operators forcing logs free manually.

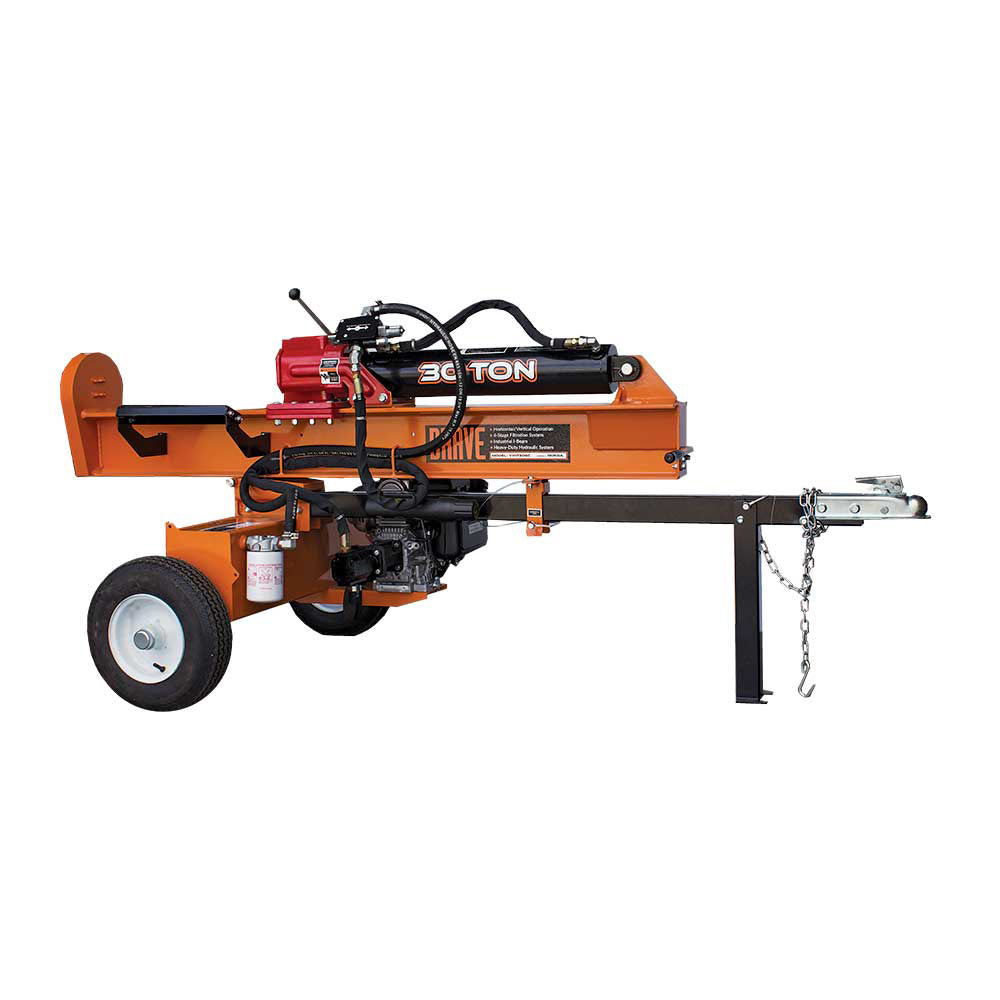

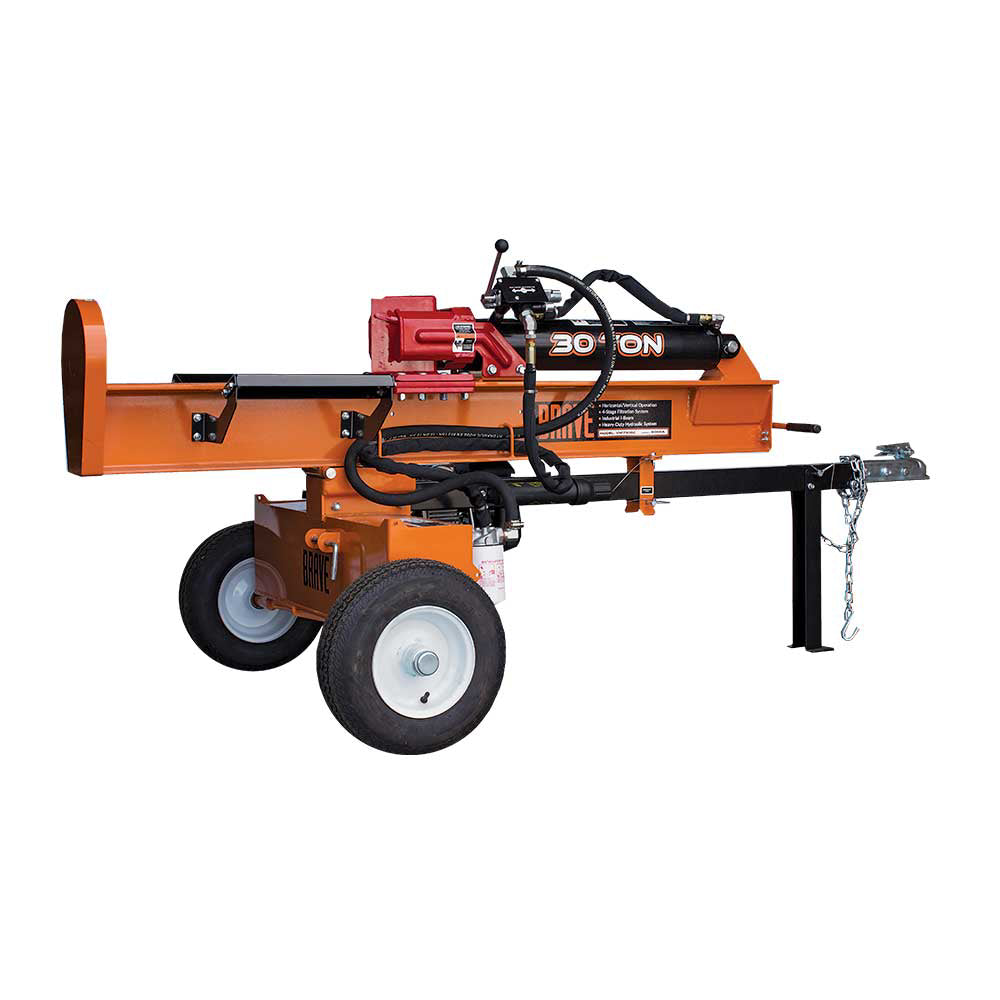

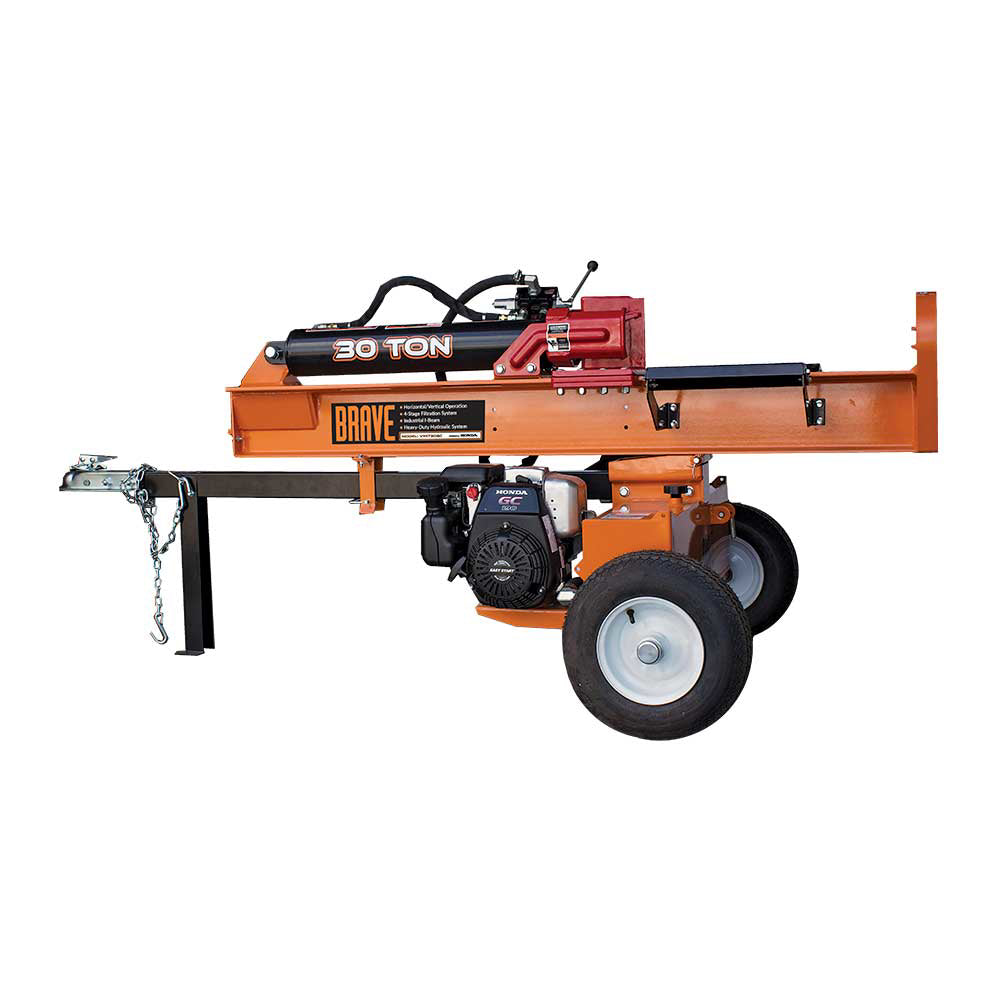

Tow-Ready Up to 45 MPH
Highway-rated tires, 2-in. ball hitch, and safety chains. The manual tube keeps the owner's manual accessible on the machine at all times. Optional fenders and engine guard available for operators who want added protection during transport.
Free Shipping — No Sales Tax
Ships free to the continental United States. No sales tax on your order. Contact us before placing your order to confirm availability and arrange freight delivery to your location.
