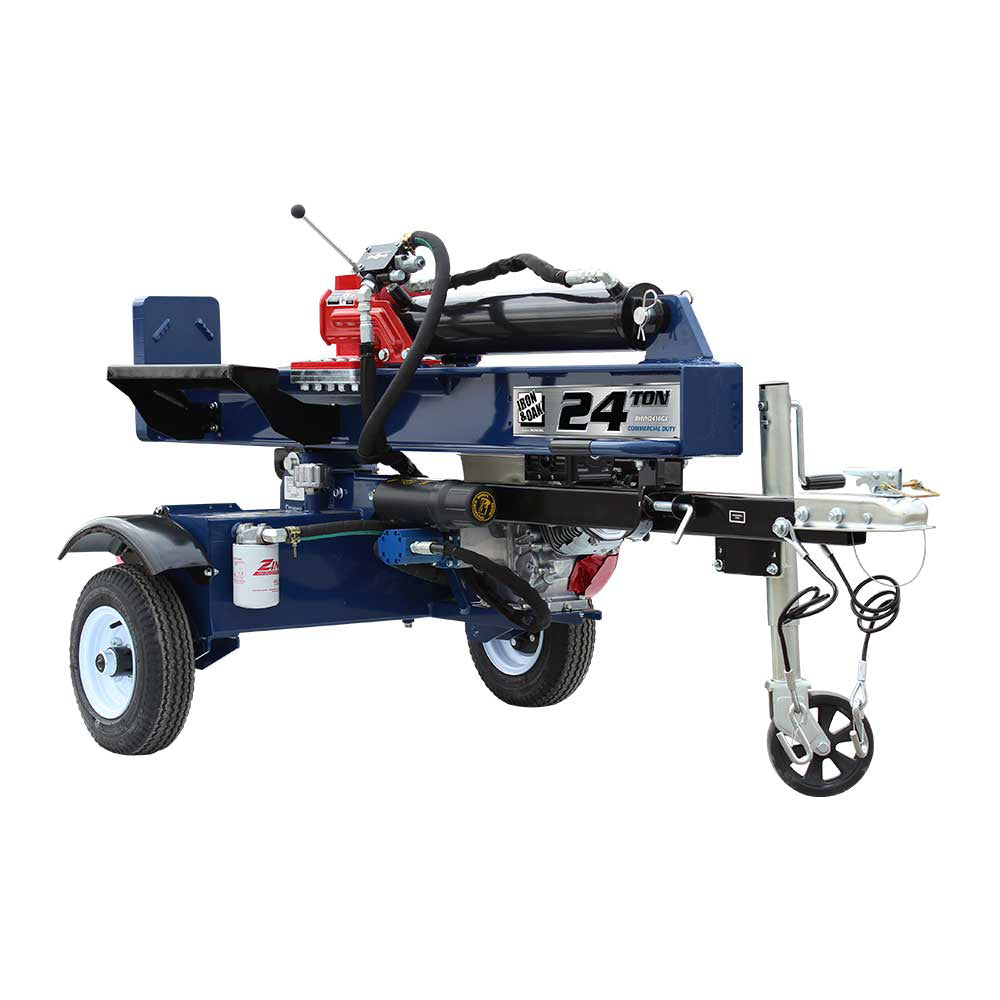

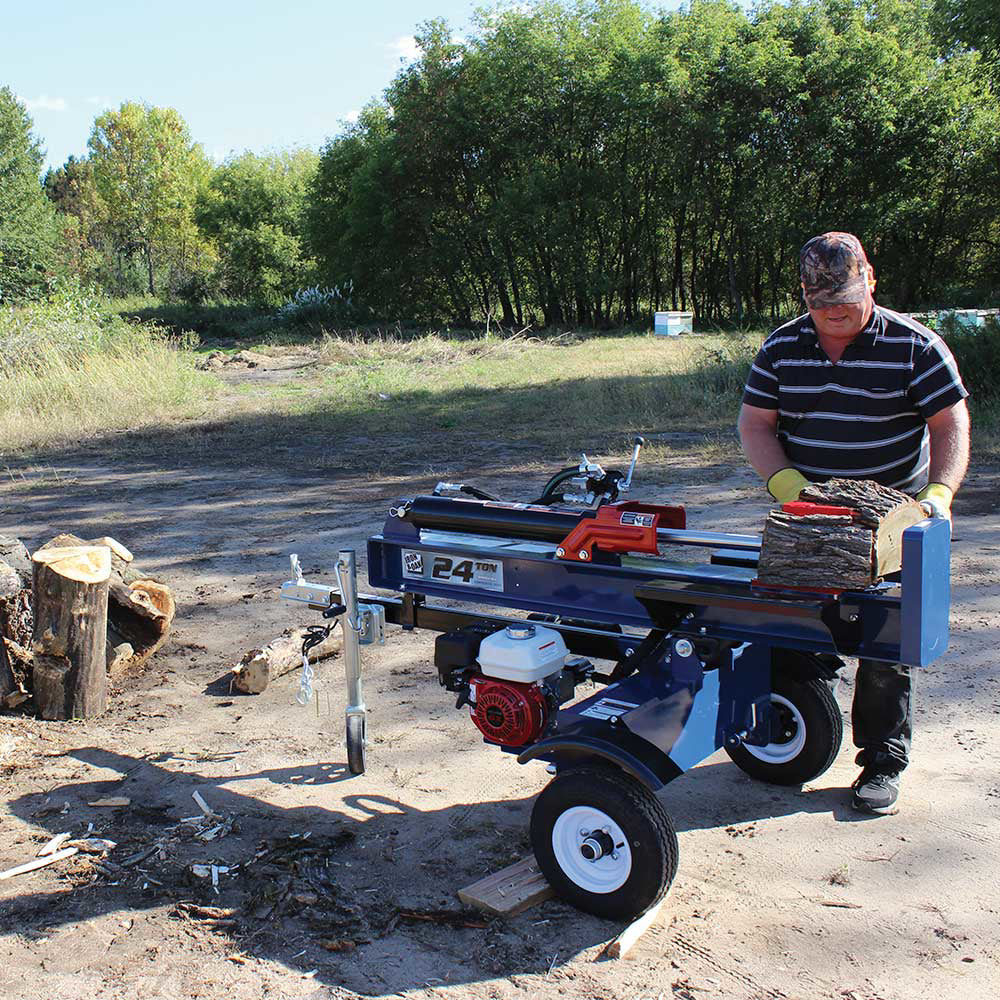

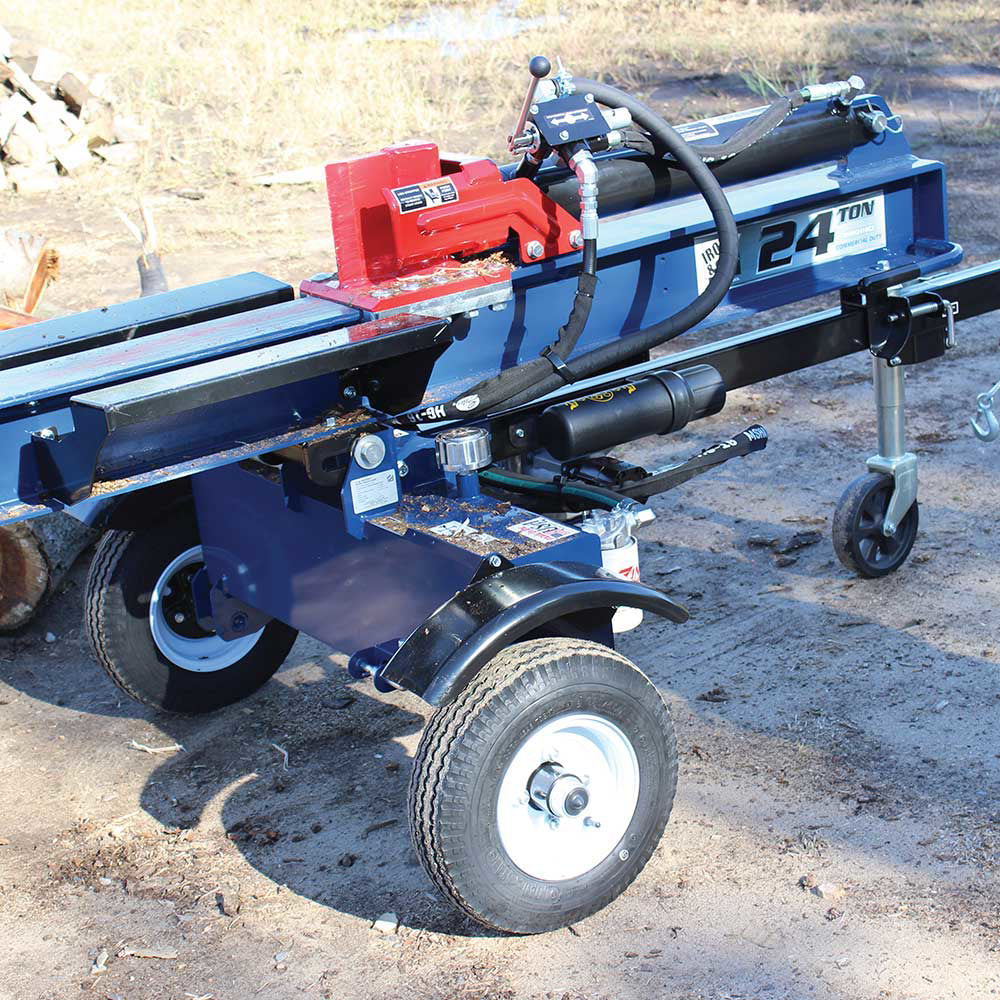

The Iron & Oak BHVH2418GX is a 24-ton tow-behind log splitter made in the USA, powered by a Honda GX160. Built to a higher commercial standard than the BravePro lineup — 675 lbs. dry weight, 10-gallon hydraulic system, heavy-duty 5-bolt wedge, auto latch beam lock, offset valve for ergonomic operator positioning, and highway-rated tires with tow cables included. Operates horizontally and vertically with a 32-inch splitting height.
Specifications
- Equipment Type: Log Splitter (Tow-Behind)
- Splitting Force: 24 tons

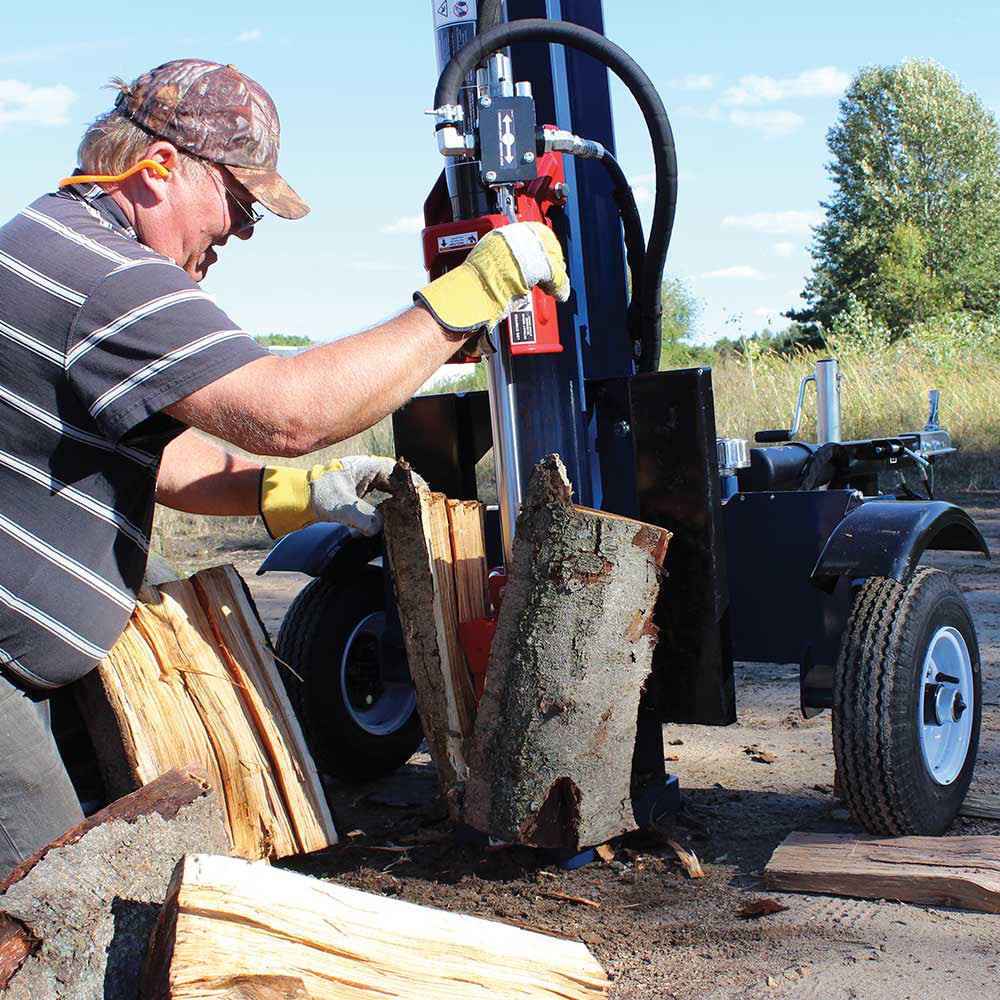

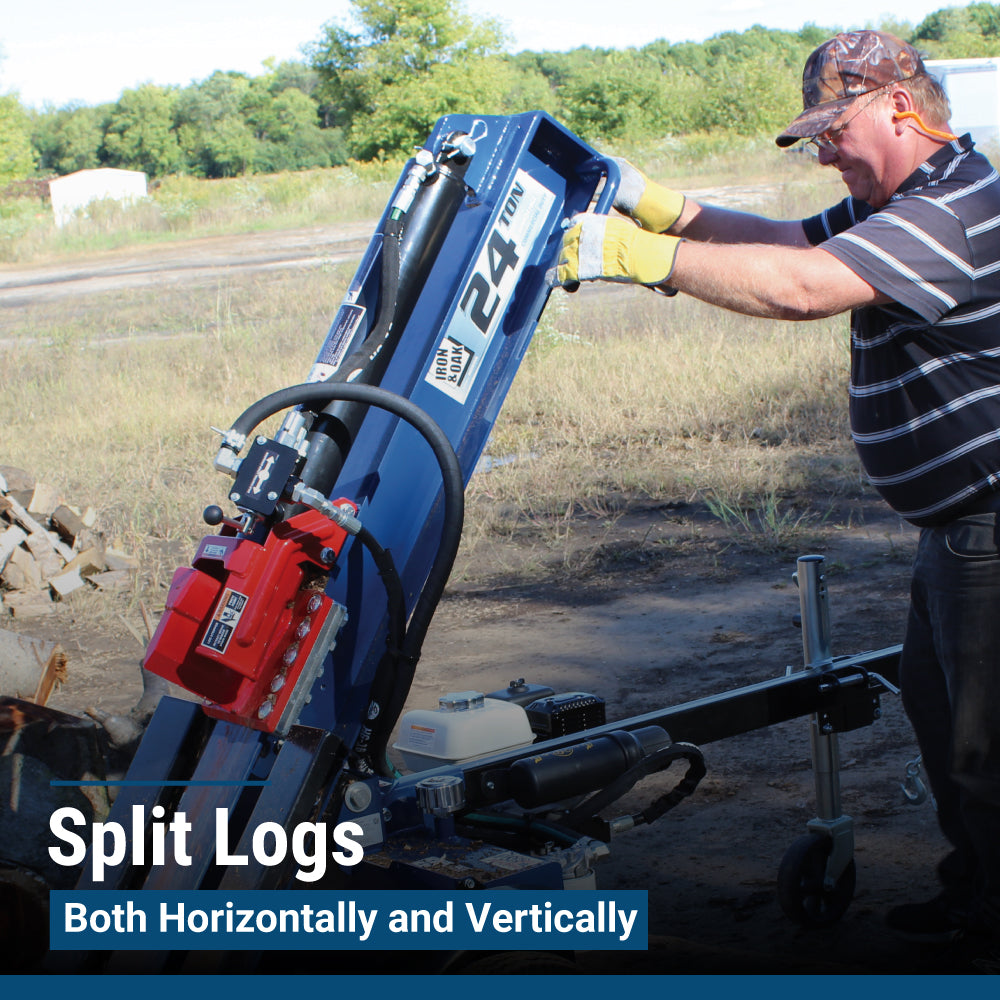

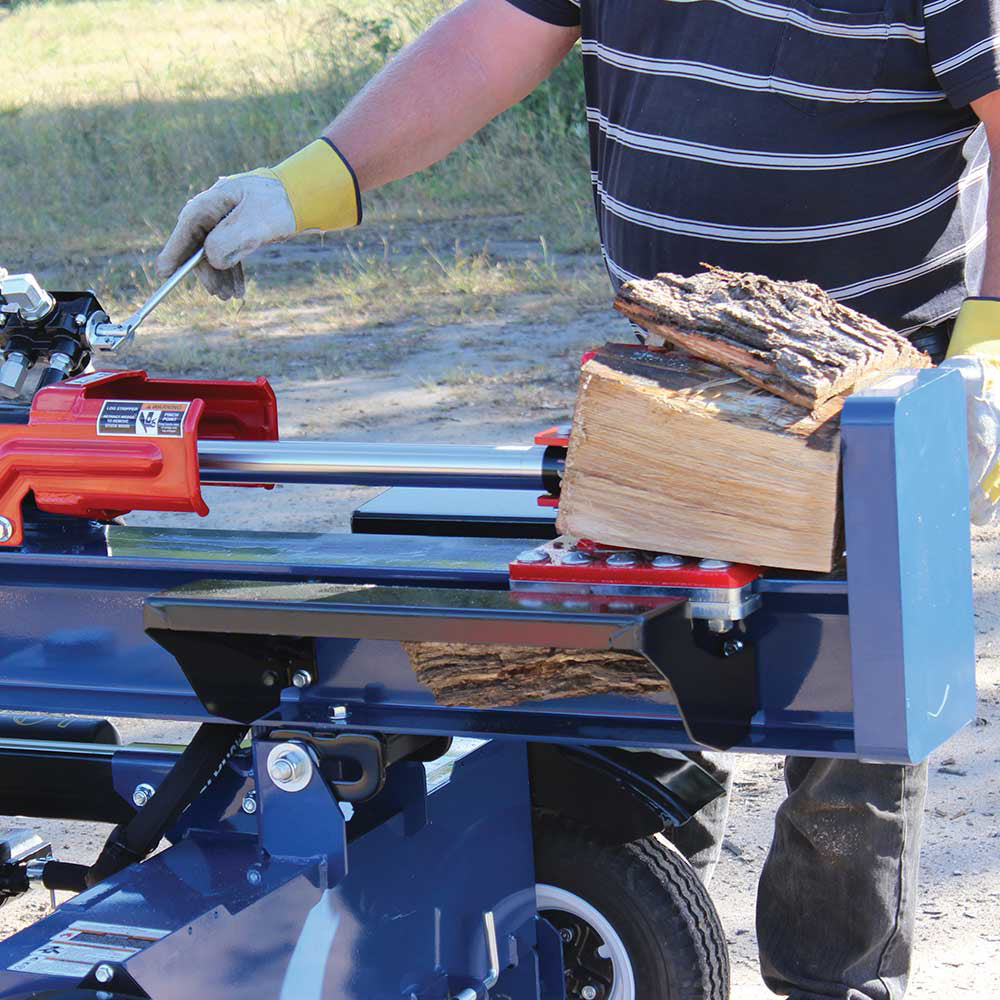

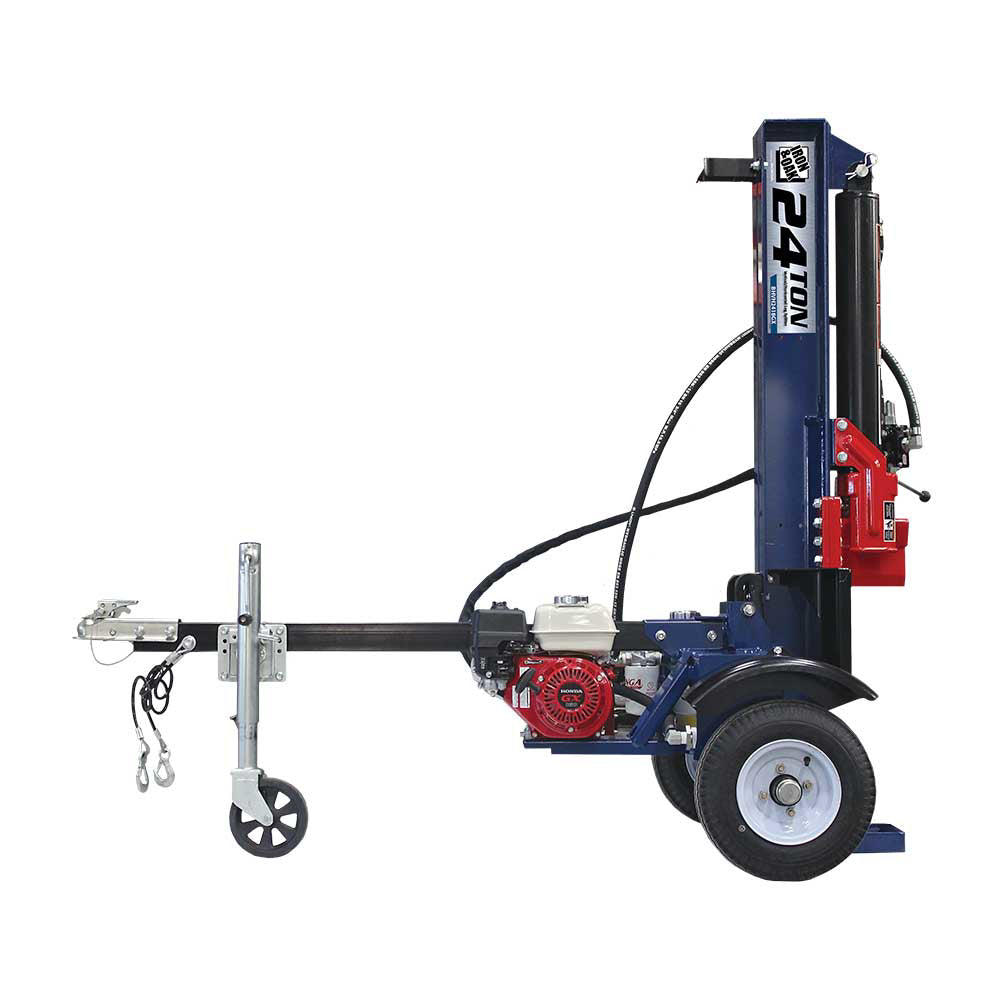

- Operation: Horizontal and Vertical
- Engine: Honda GX160 — 163cc displacement
- Cycle Time: 13 seconds
- Pump: 11 GPM Hi-Lo 2-stage

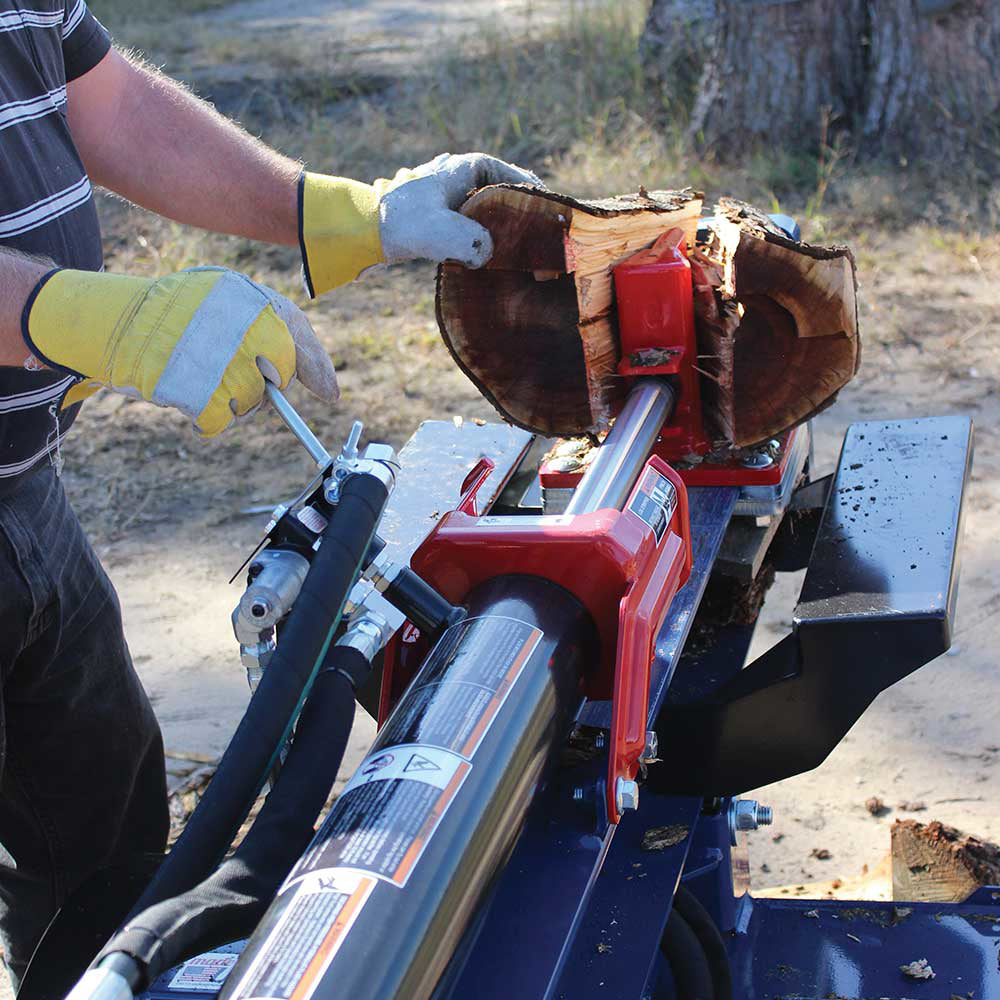

- Cylinder: 4 in. x 24 in. clevis type, 1.75-in. rod

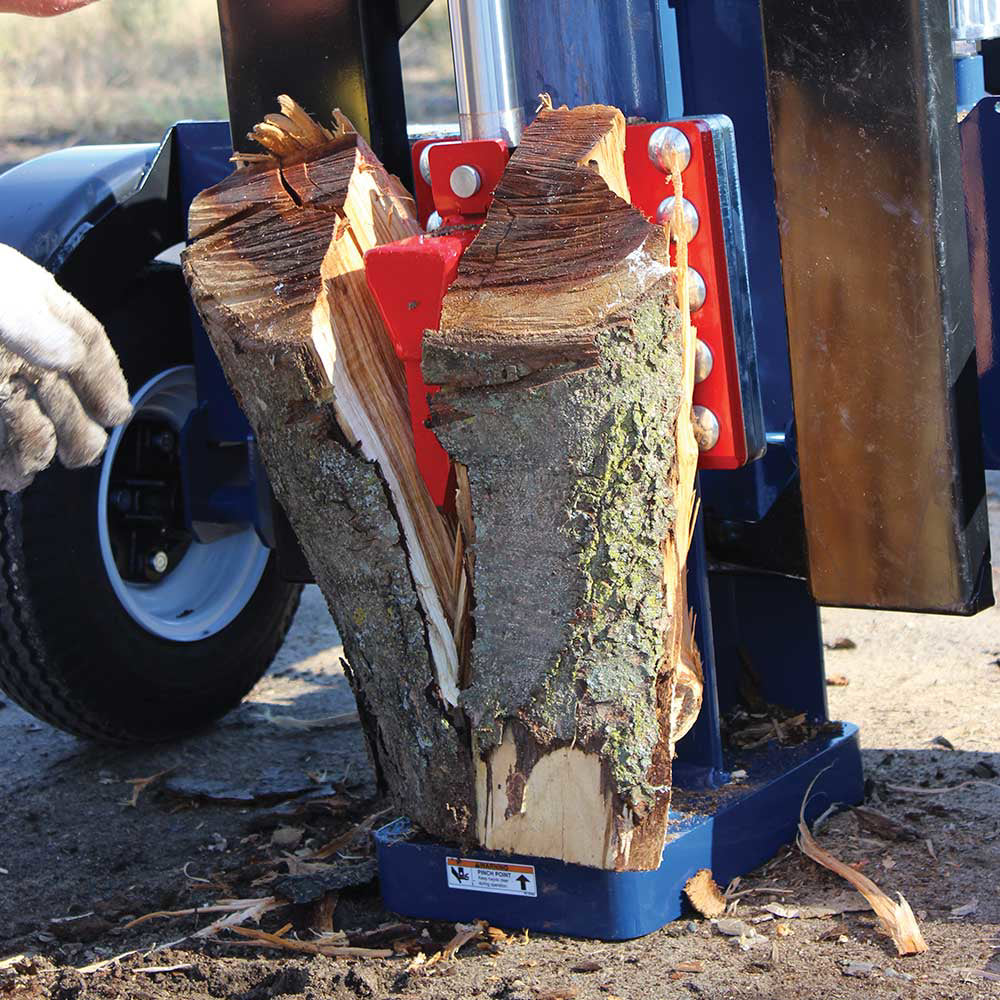

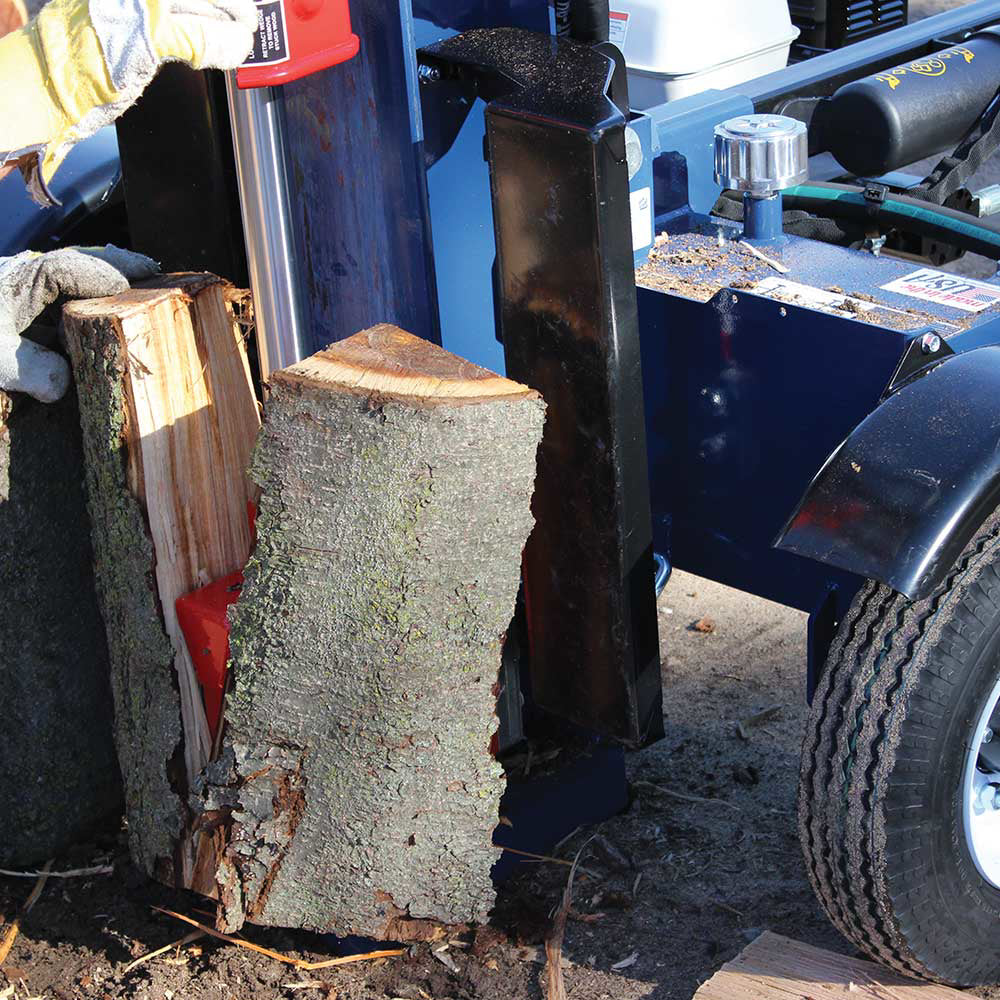

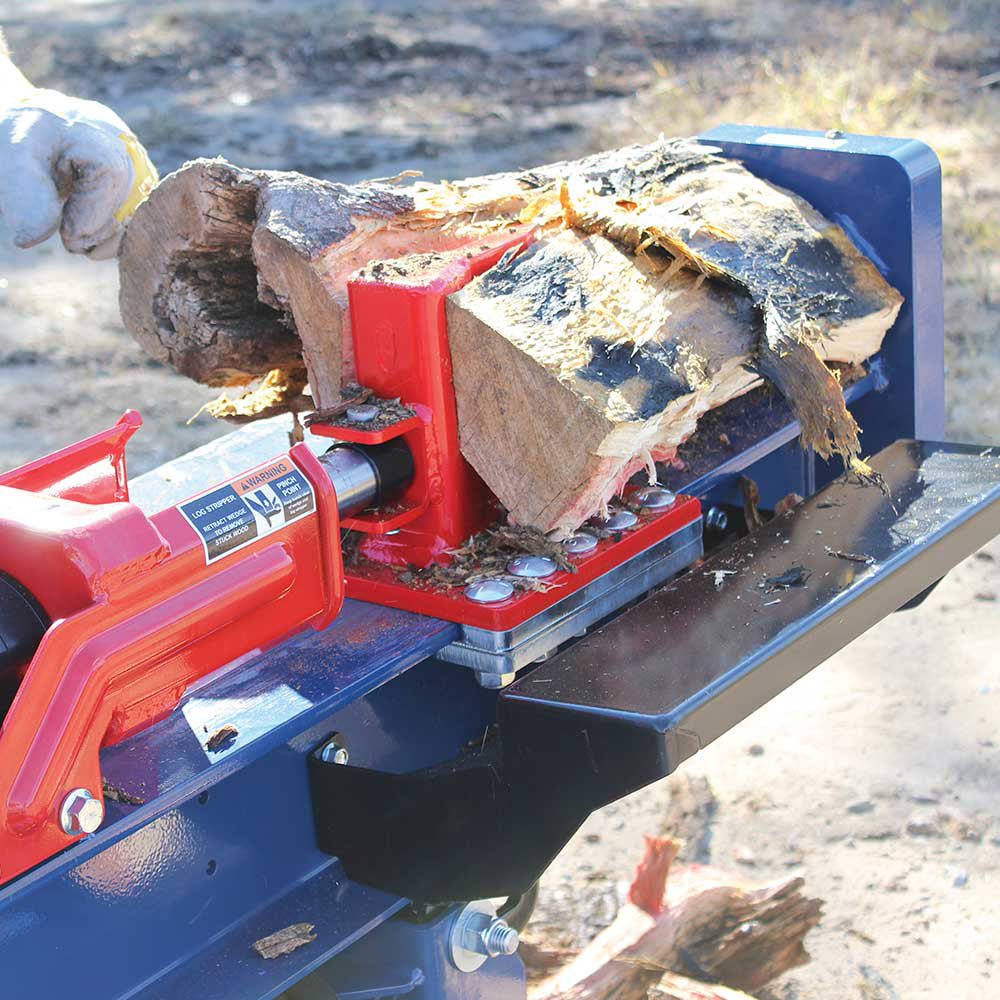

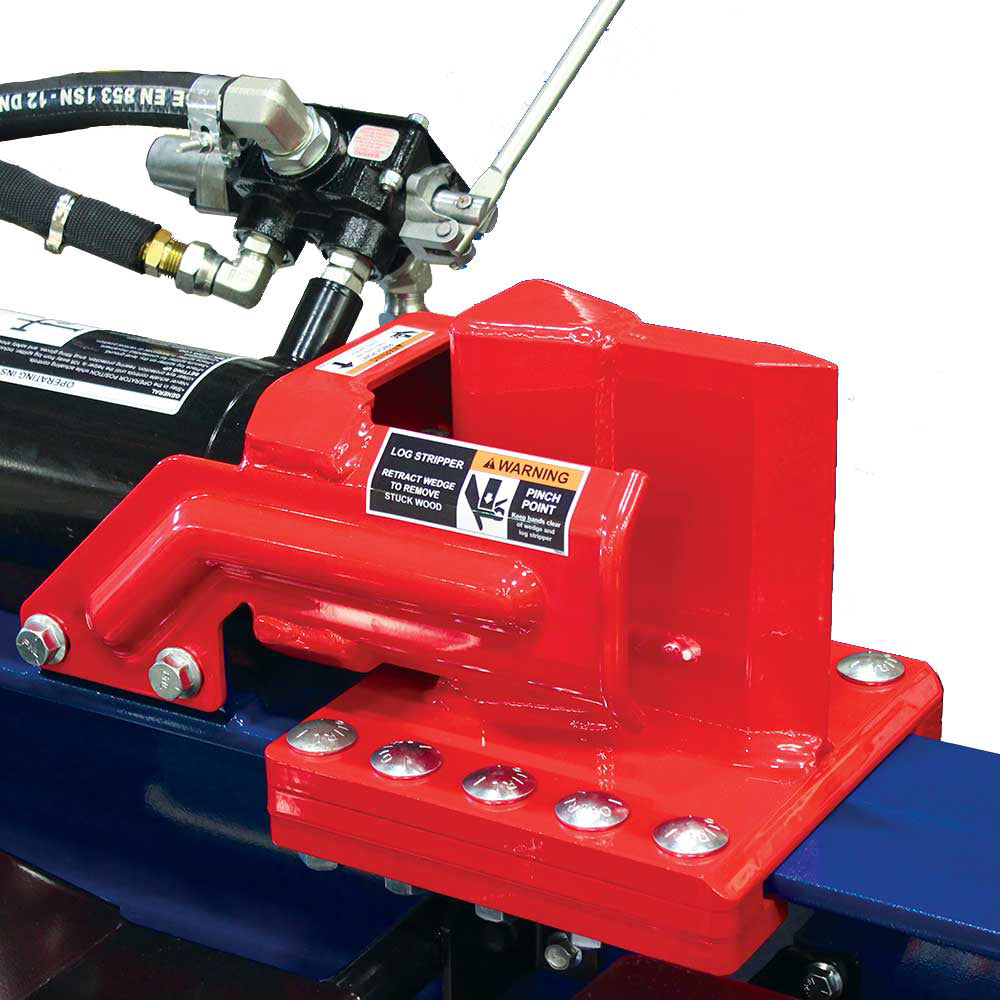

- Wedge: Heavy-duty, 5 bolts per side
- Splitting Height: 32 in.
- Max Log Length: 25 in.
- Hydraulic Capacity: 10 gal. system total (9 gal. tank)
- PSI: Not specified — Hi-Lo 2-stage system
- Hitch: 2 in. ball

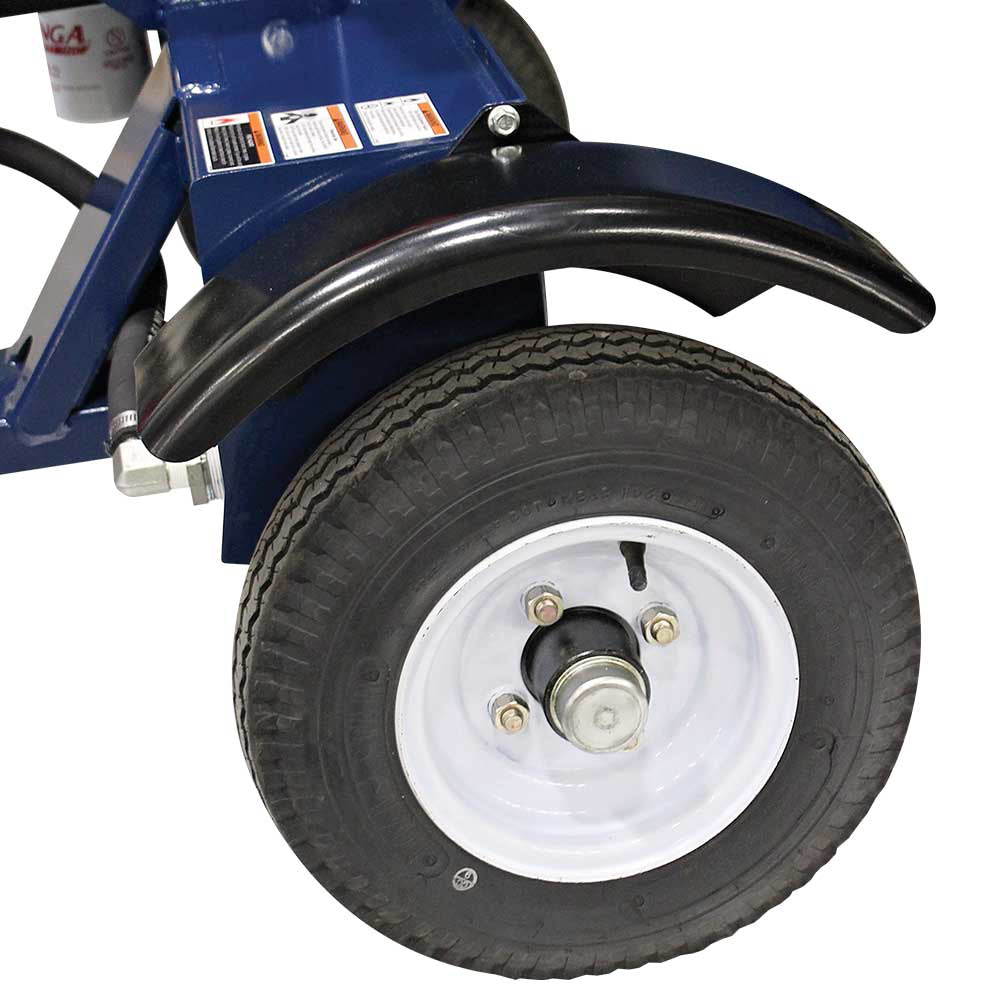

- Tires: 4.8 in. x 8.0 in. highway rated
- Dry Weight: 675 lbs.
- Country of Origin: Made in the USA (with US and imported components)
- SKU: BHVH2418GX
Made in the USA — Commercial-Grade Construction
Iron & Oak manufactures in the United States to commercial-grade specifications. At 675 lbs. dry weight — 125 to 175 lbs. heavier than comparable BravePro tow-behind units — the BHVH2418GX is built with more steel, a larger hydraulic system (10 gallons vs. 8-9 gallons), and a heavy-duty 5-bolt wedge design that handles repeated impact without movement or deformation over time.
Auto Latch Beam Lock

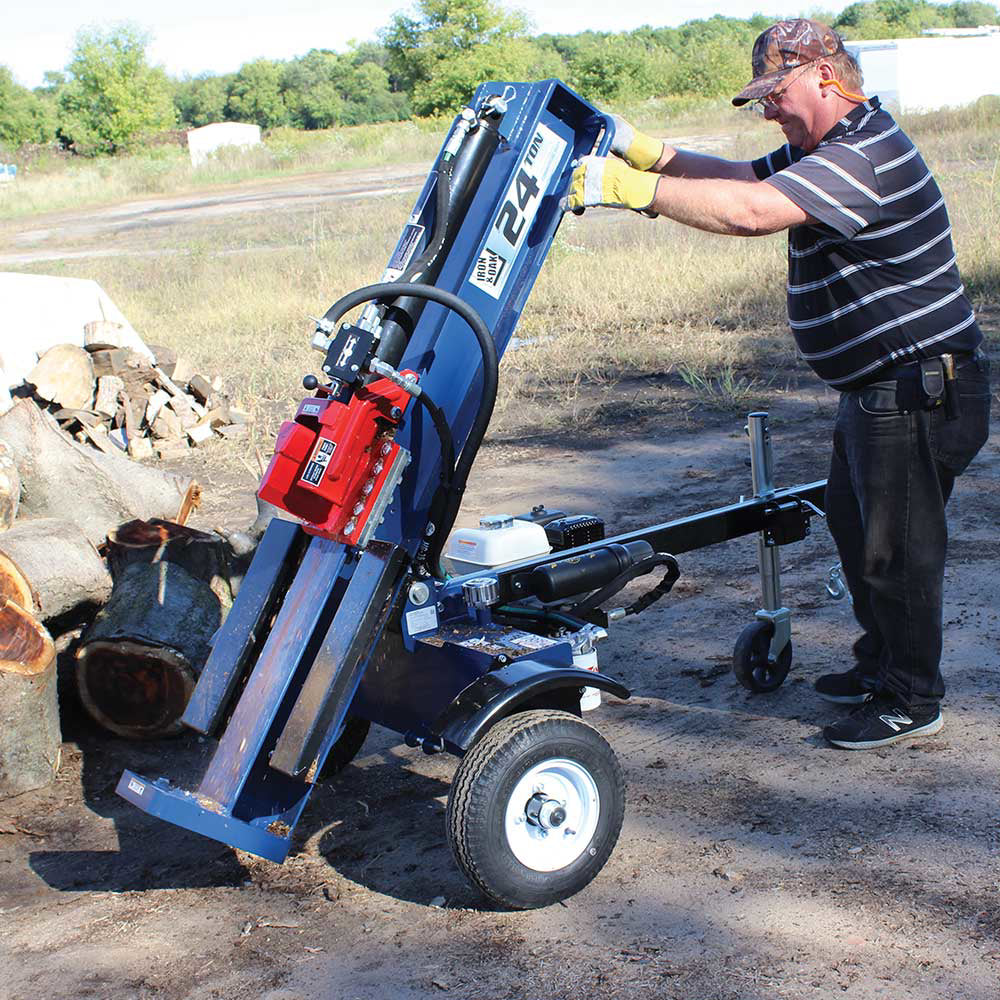

The auto latch system locks the beam into the horizontal position for safe towing — no manual pin to forget, no beam shifting in transit. The enhanced handle assists with transitions between horizontal and vertical positions, reducing the physical effort required to reposition a 675-lb. machine on uneven ground.
Hi-Lo 2-Stage Pump + Offset Valve
The Hi-Lo 2-stage pump delivers high flow at low pressure for fast cylinder extension, then automatically shifts to high pressure for maximum splitting force at contact. This system is more efficient than standard 2-stage designs — faster cycle times at lighter loads, full 24-ton force when needed. The offset valve positions the control out of the direct line of the operator, improving ergonomics during extended splitting sessions.

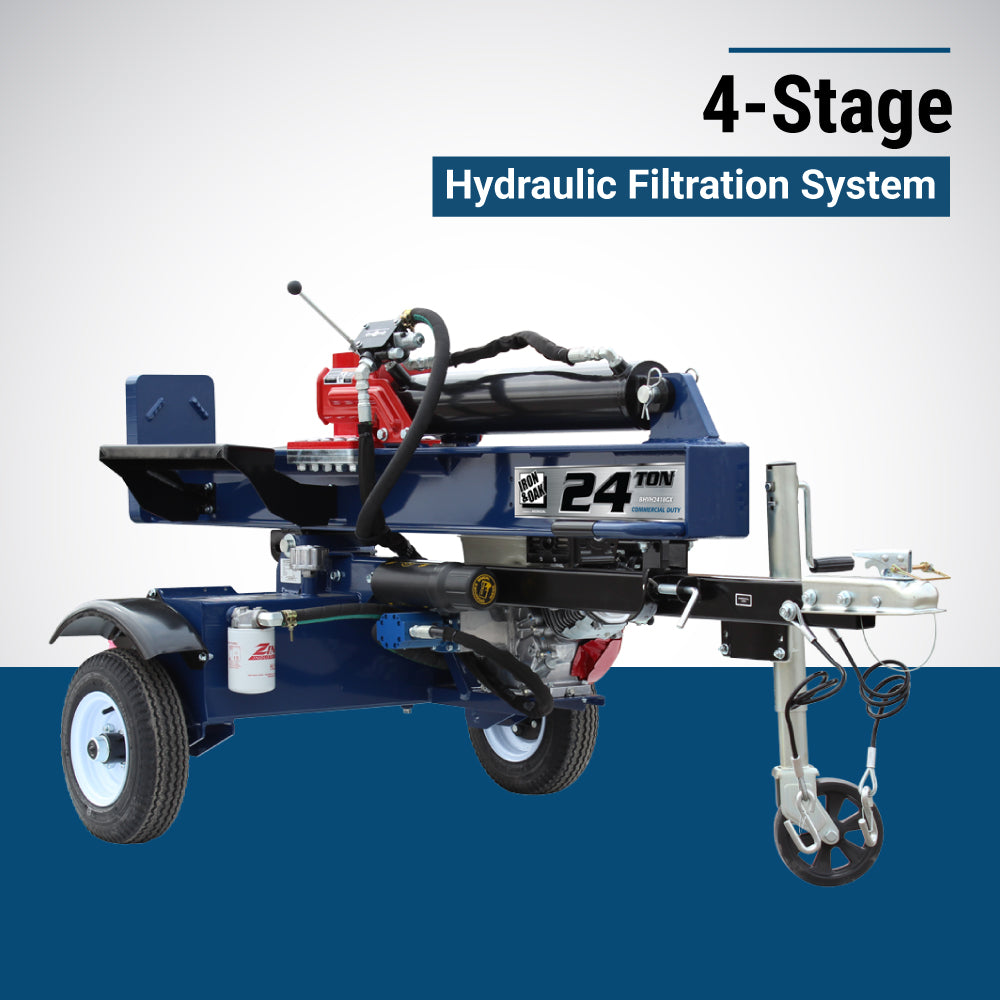

4-Stage Hydraulic Filtration

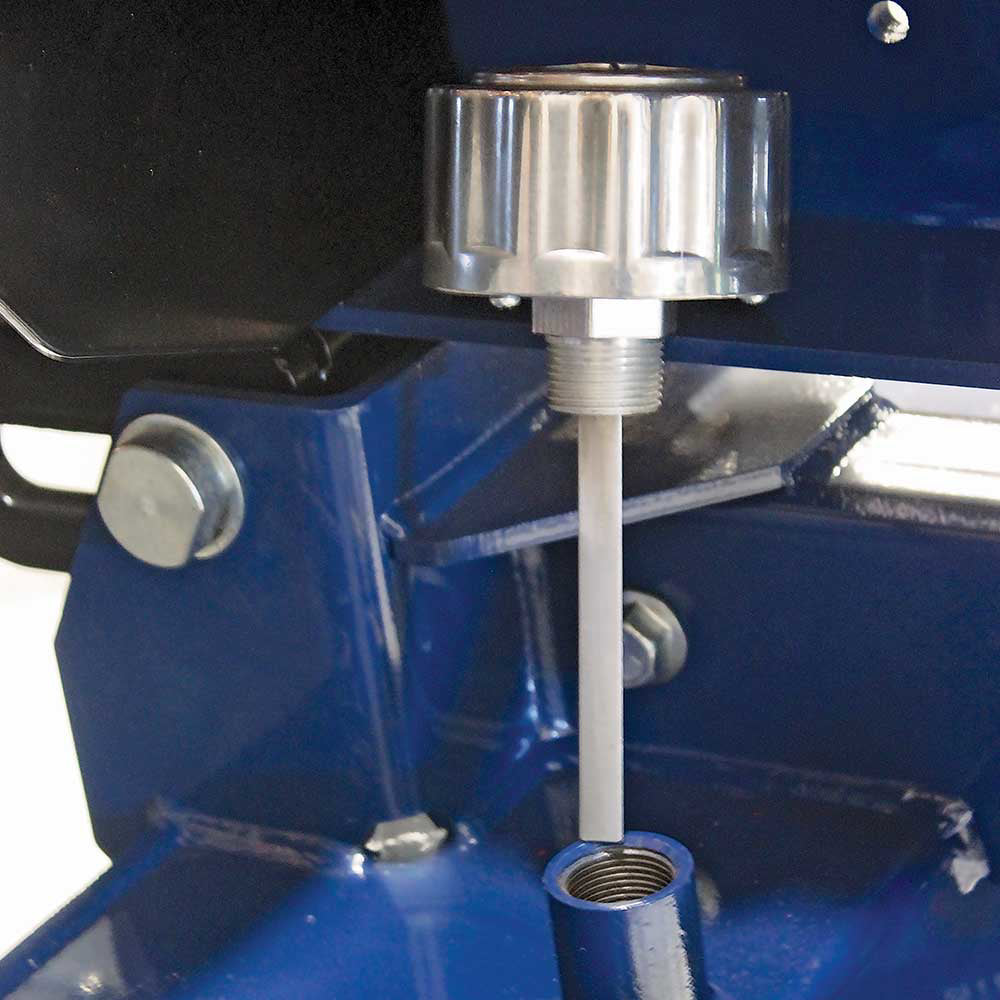

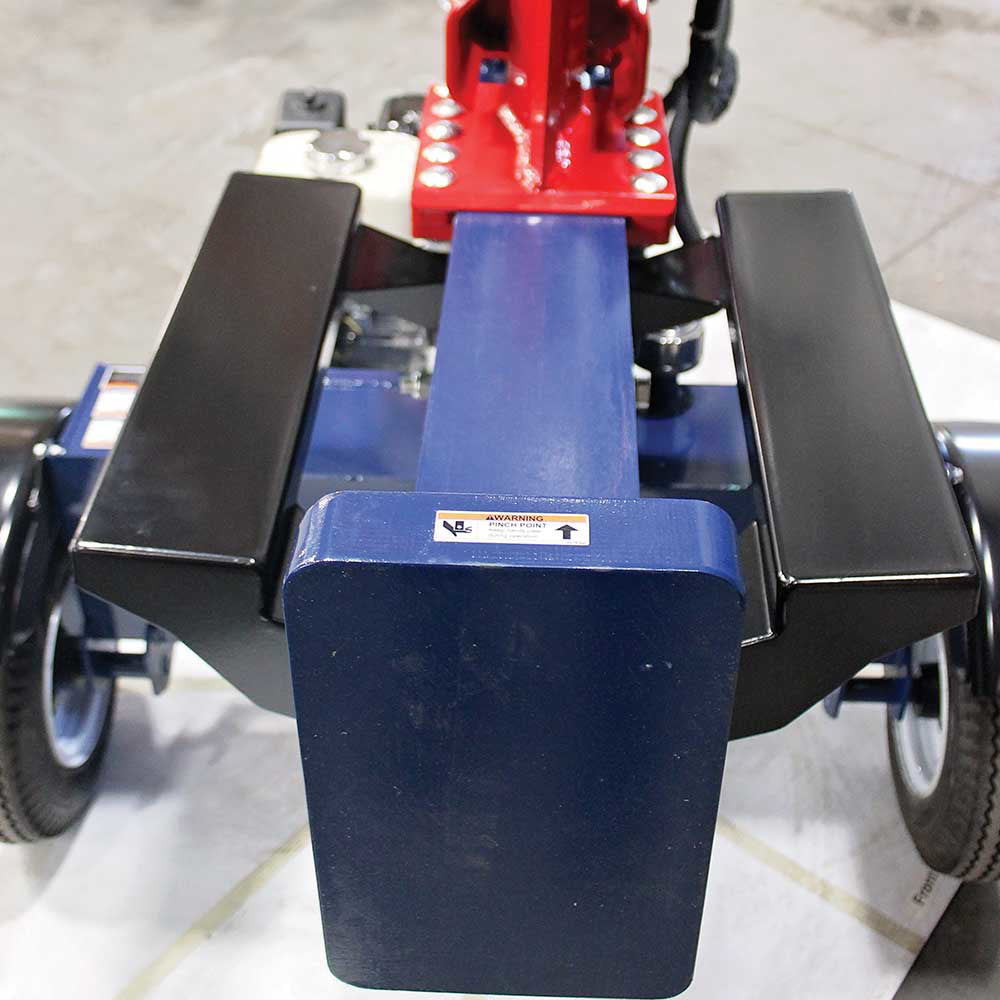

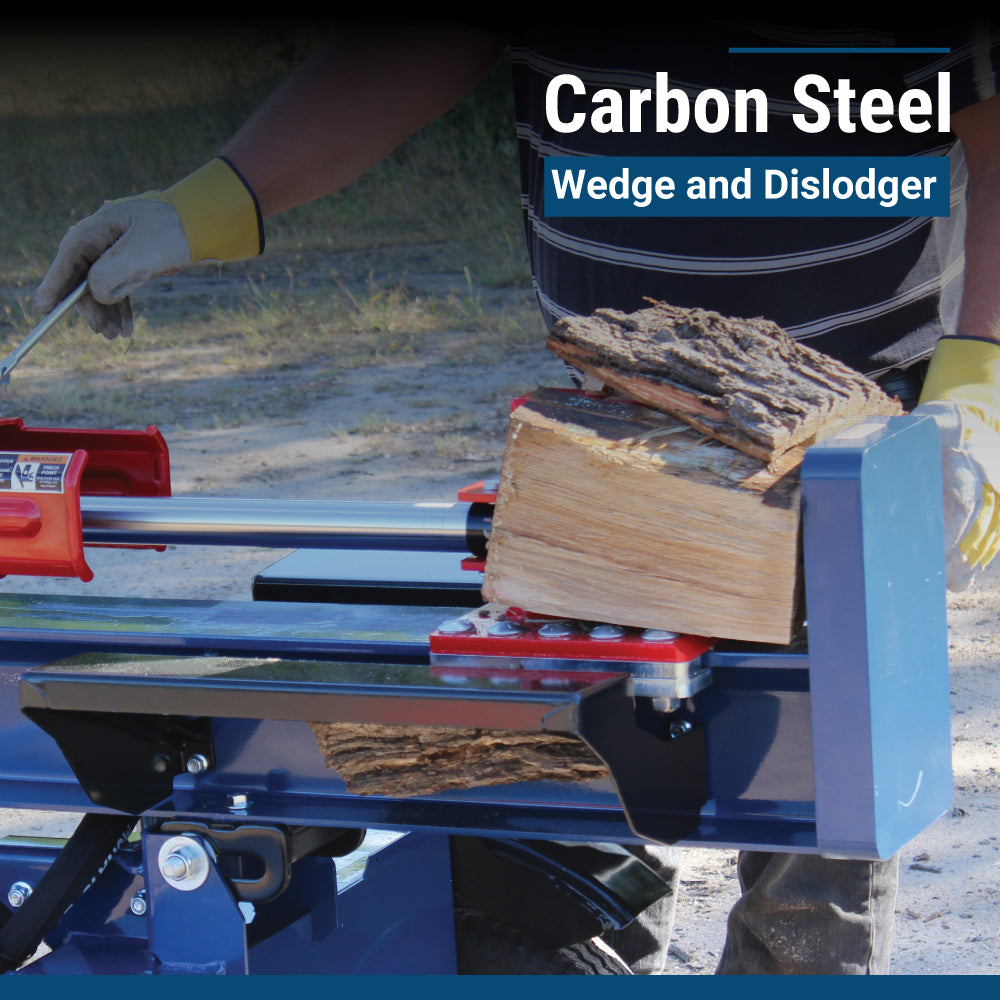

Suction strainer, return line filter, breather cap air filter, and magnetic drain plug protect the hydraulic circuit from metal particles and microcontaminants. Halite commercial cylinder seals maintain consistent pressure throughout the split cycle. Log dislodger and log cradle standard on every unit. Larger jack wheel makes positioning and moving the unit easier on uneven terrain. Tow cables included.
Free Shipping — No Sales Tax
Ships free to the continental United States. No sales tax on your order. Contact us before placing your order to confirm availability and arrange freight delivery to your location.
