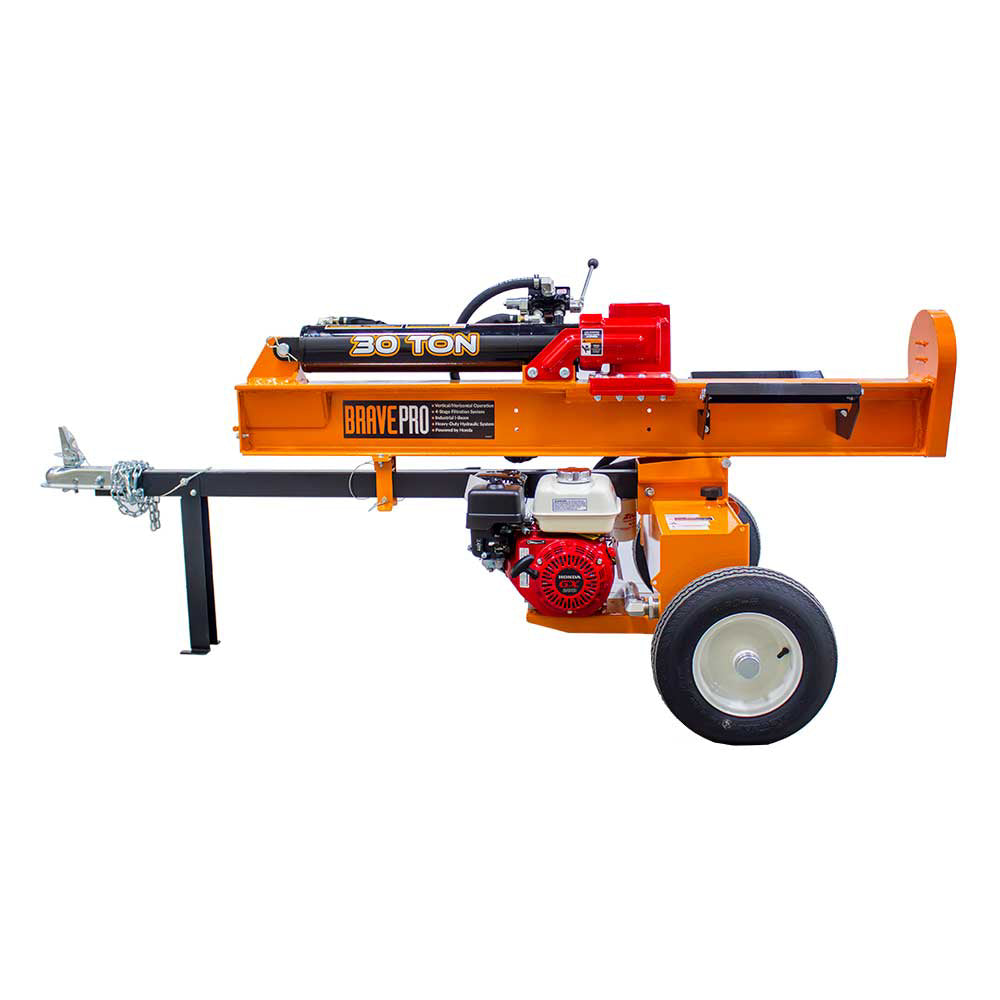

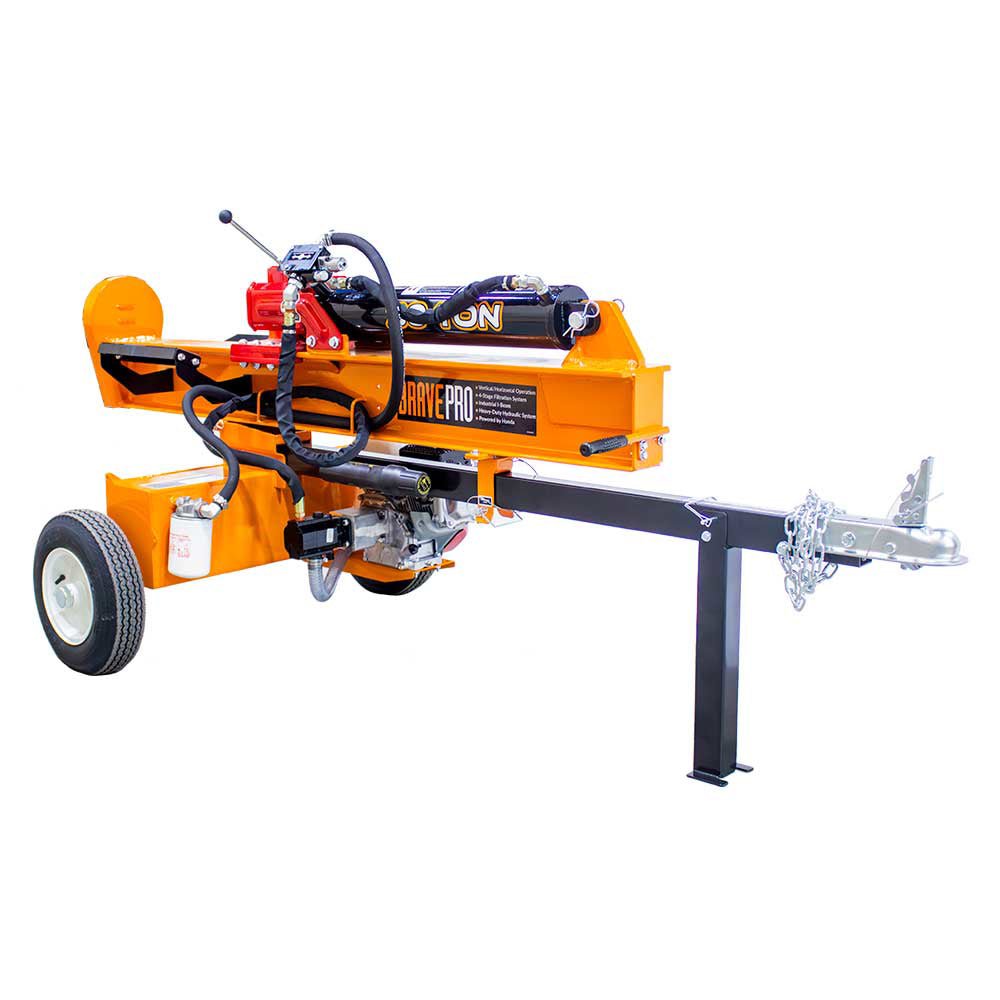

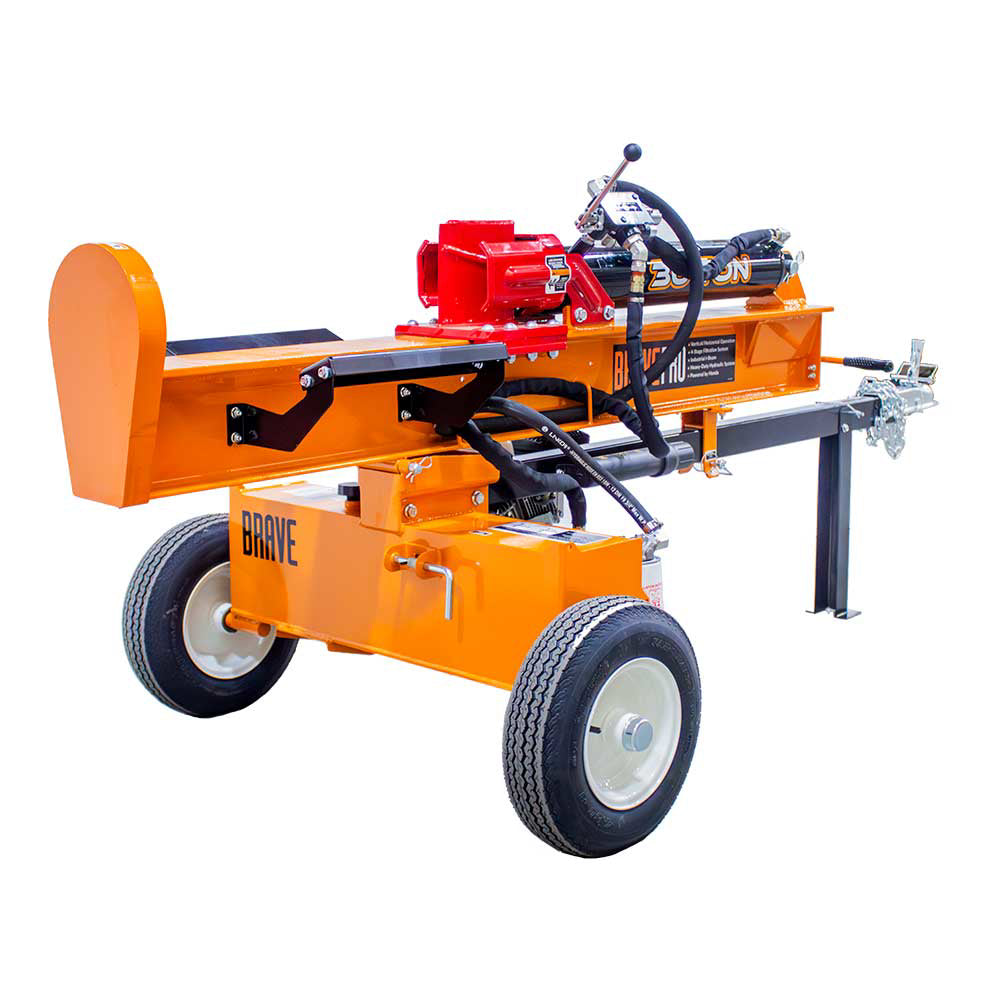

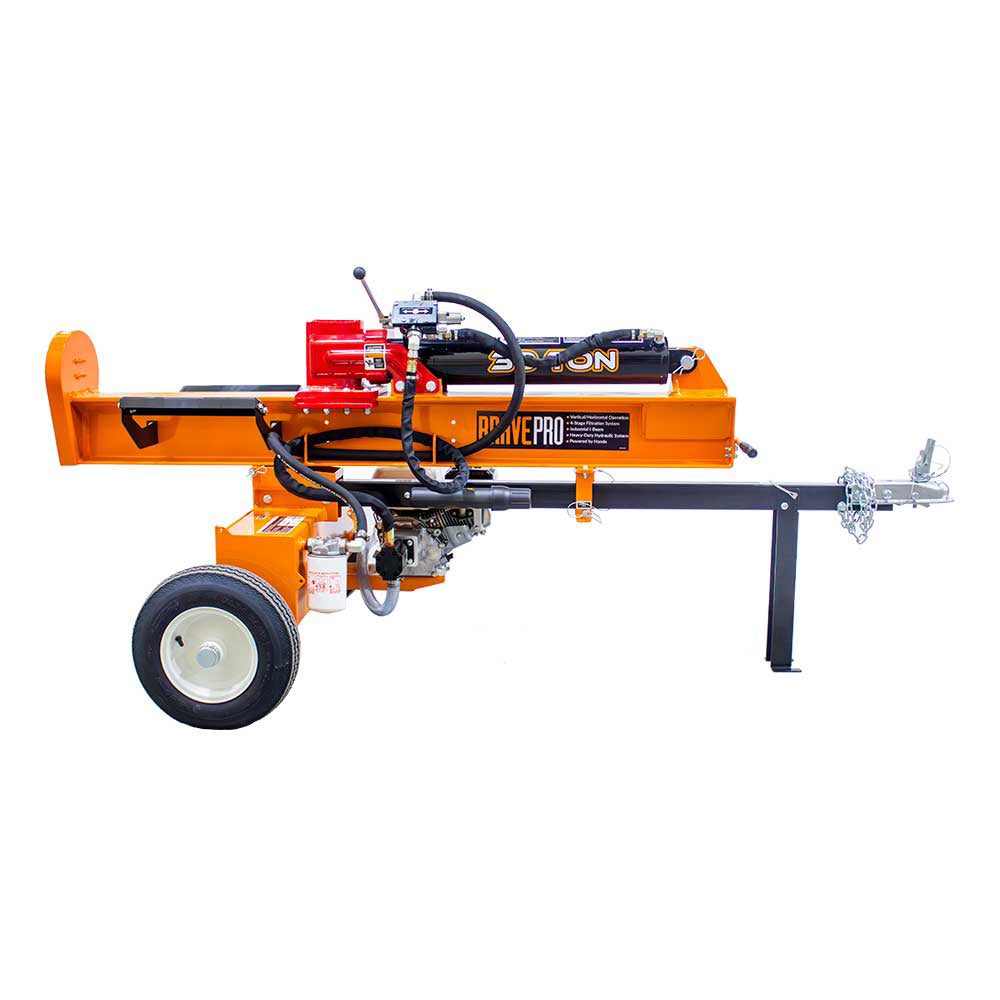

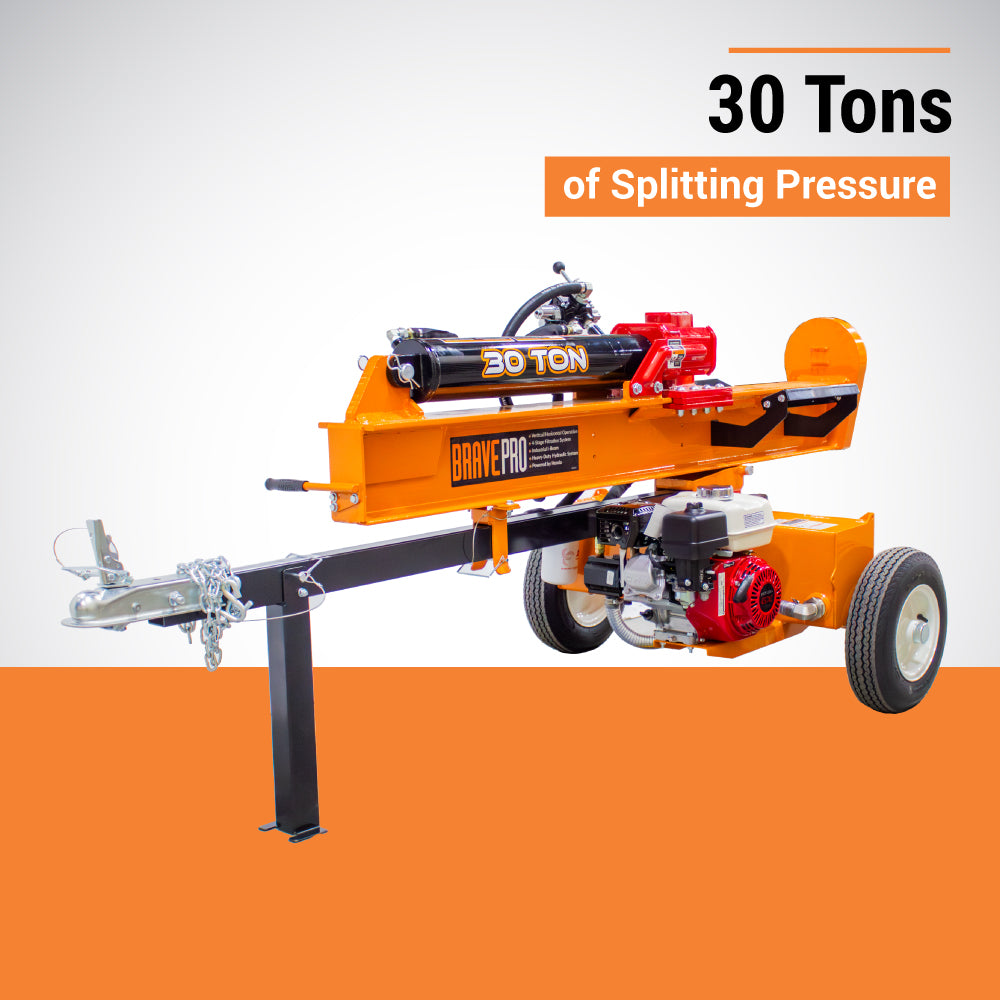

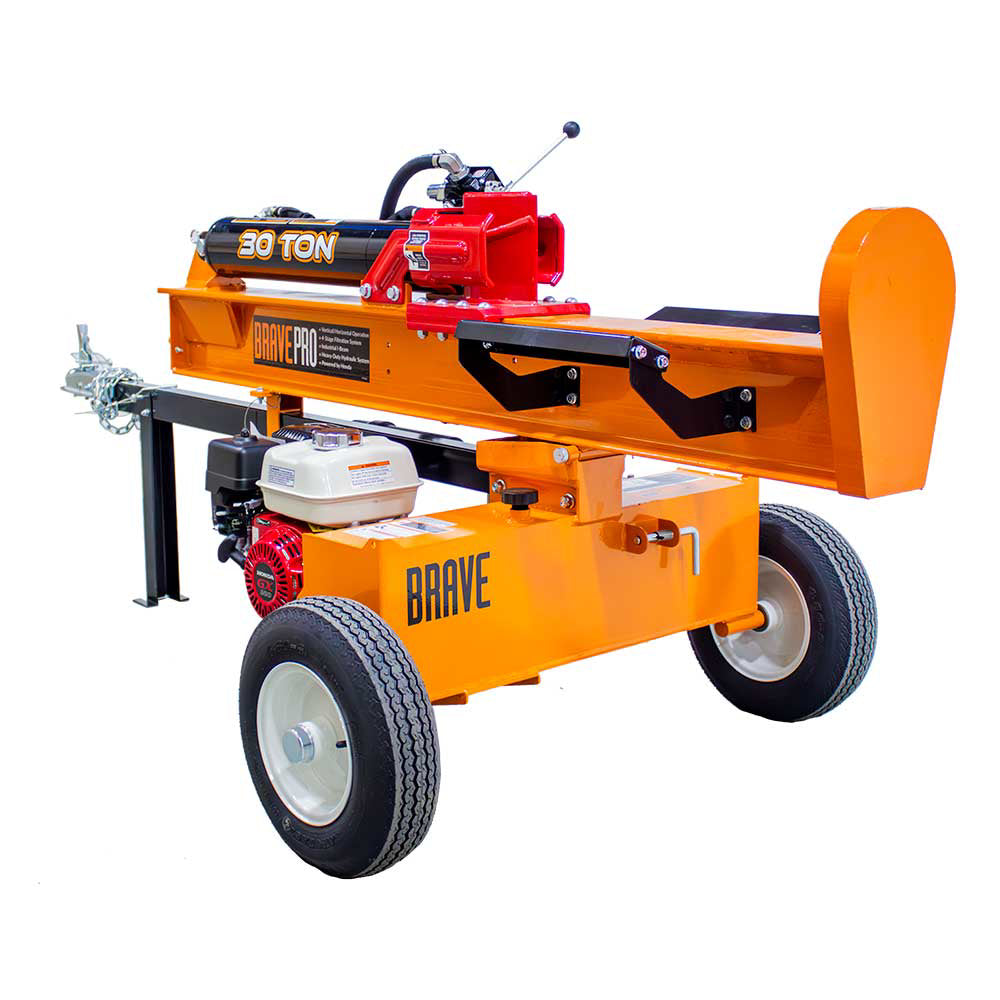

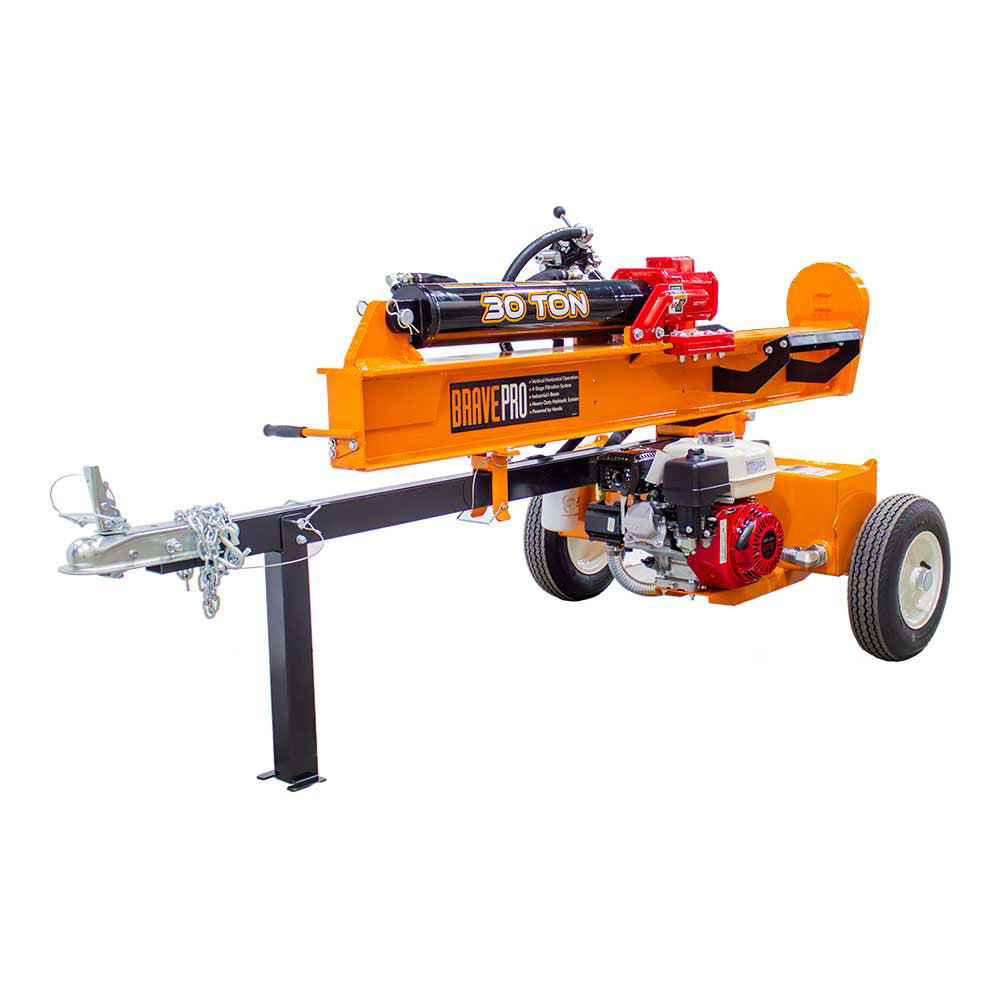

The BravePro VH1730GX delivers 30 tons of splitting force powered by a Honda GX200 — the commercial-grade GX series engine on a larger 5 in. bore cylinder. Built on the same industrial I-beam platform as the full BravePro lineup, with 4-stage hydraulic filtration, O-ring control valve fittings, and a high-performance wedge design optimized for clean, efficient splits. Tow-ready up to 45 MPH. Operates both horizontally and vertically.
Specifications
- Equipment Type: Log Splitter (Tow-Behind)
- Splitting Force: 30 tons
- Operation: Horizontal and Vertical
- Engine: Honda GX200 — 196cc displacement
- Cycle Time: 14 seconds
- Cylinder: 5 in. bore x 24 in. stroke
- Wedge: 8 in. high carbon steel, high-performance design
- Splitting Height: 30 in.
- Max Log Diameter: 16 in.
- Max Log Length: 25 in.
- Hydraulic Capacity: 8.5 gal.
- Fuel Capacity: 0.83 gal.
- PSI: 3,500
- Hitch: 2 in. ball
- Towing Speed: 45 MPH max
- Dimensions: 95 in. L x 44 in. W x 43 in. H
- Dry Weight: 530 lbs.
- Log Cradle: Yes
- Fenders: Optional
- SKU: VH1730GX

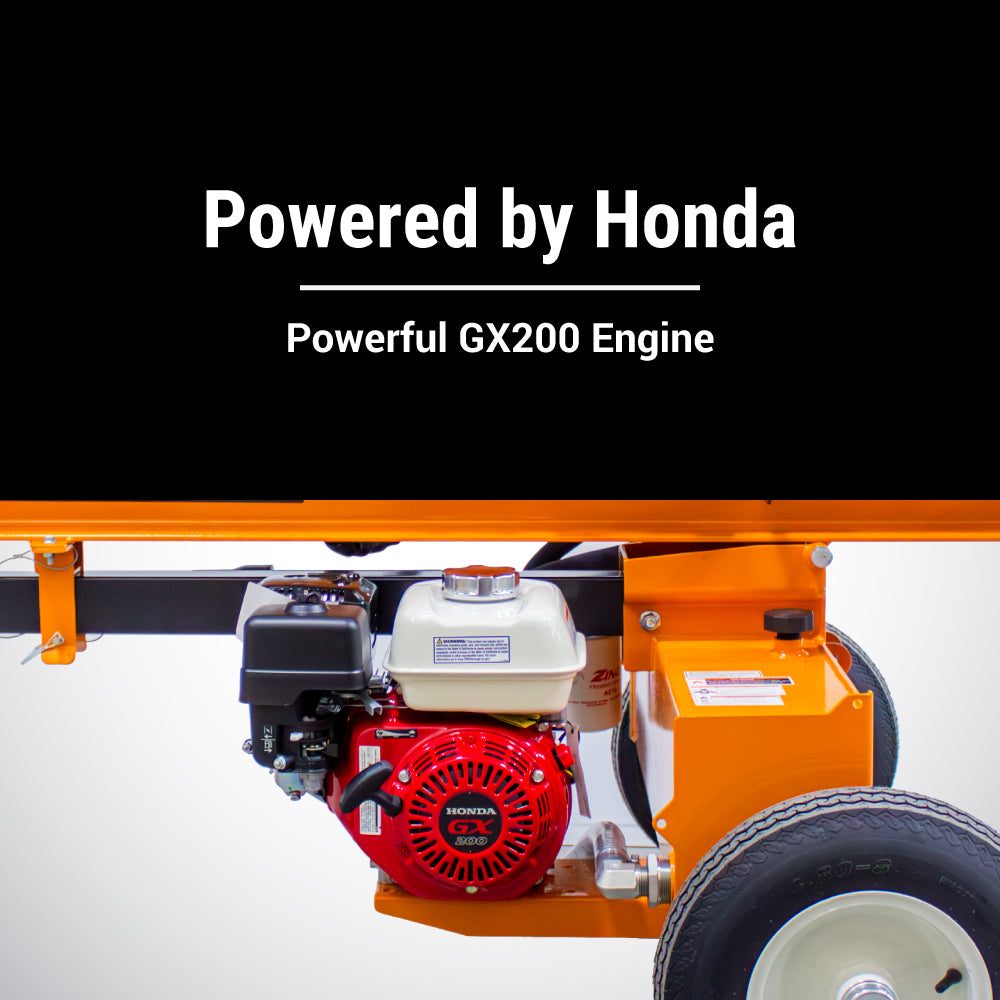

Honda GX200 — Commercial-Grade 30-Ton Power
The Honda GX200 is a commercial-grade engine with cast iron cylinder sleeve, ball bearing supported crankshaft, and longer oil change intervals than consumer-grade equivalents. Paired with a 5-inch cylinder bore — the largest in the BravePro tow-behind lineup — it generates 30 tons of consistent splitting force at 3,500 PSI. For operators splitting large-diameter hardwood daily, the GX200 handles extended sessions without the performance degradation common on lighter engines under sustained load.
High-Performance Wedge Design
The unique wedge geometry on the VH1730GX is engineered to shear wood fibers rather than force them apart — reducing resistance per cycle, lowering fuel consumption, and producing cleaner splits on cross-grain and knotty hardwood. The 8-inch high carbon steel construction resists deformation under repeated impact at full hydraulic pressure.
4-Stage Hydraulic Filtration + O-Ring Fittings
Suction strainer, breather cap air filter, return line filter, and magnetic drain plug eliminate metal particles and microcontaminants from the hydraulic circuit. O-ring fittings on the control valve reduce leak points versus standard threaded fittings. Industrial cylinder with Halite seals maintains consistent pressure throughout every split cycle. Nylon hose sleeve protects against abrasion, pinhole spray, and UV breakdown.

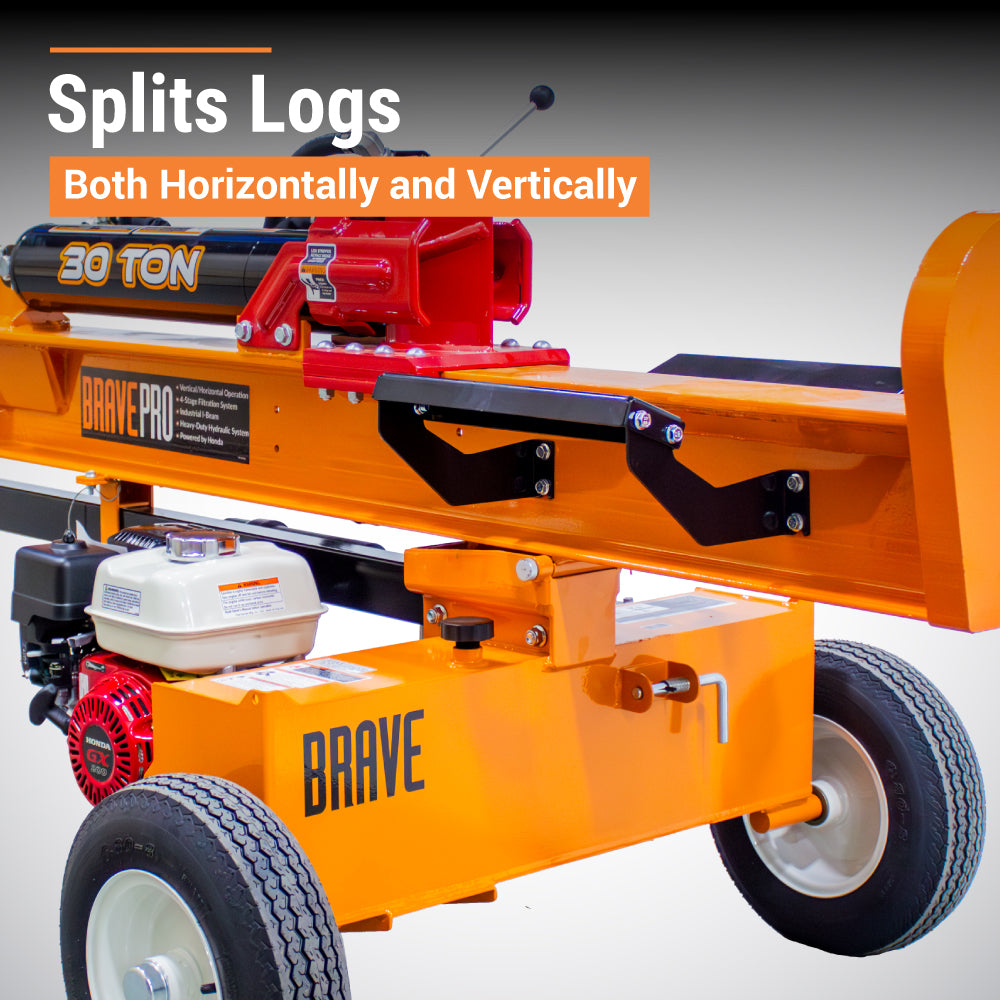

Horizontal & Vertical Operation
Lift handle for fast position transitions. Log cradles catch split pieces and serve as a work surface for large rounds. Heavy-duty log dislodger ejects stuck logs automatically. Manual tube keeps owner's manual on the machine at all times. Optional fenders and engine guard available for added transport protection.
Free Shipping — No Sales Tax
Ships free to the continental United States. No sales tax on your order. Contact us before placing your order to confirm availability and arrange freight delivery to your location.
