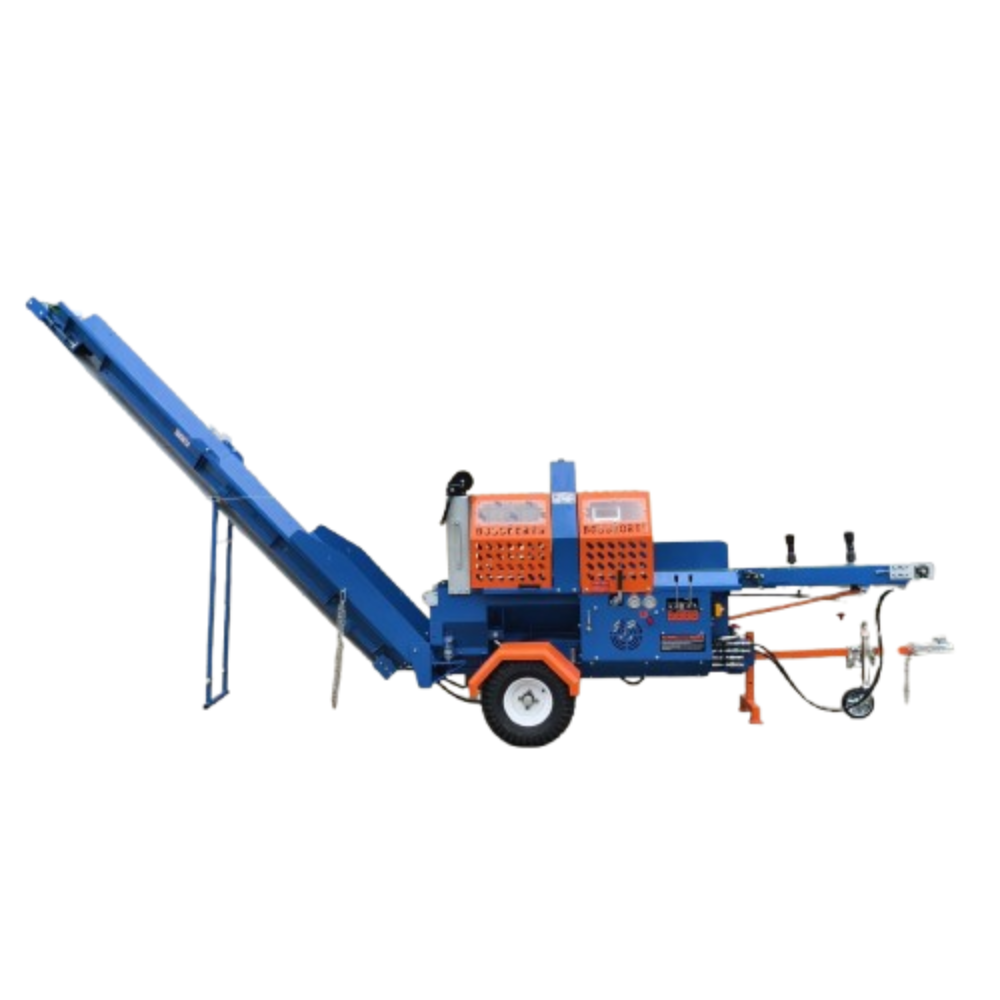

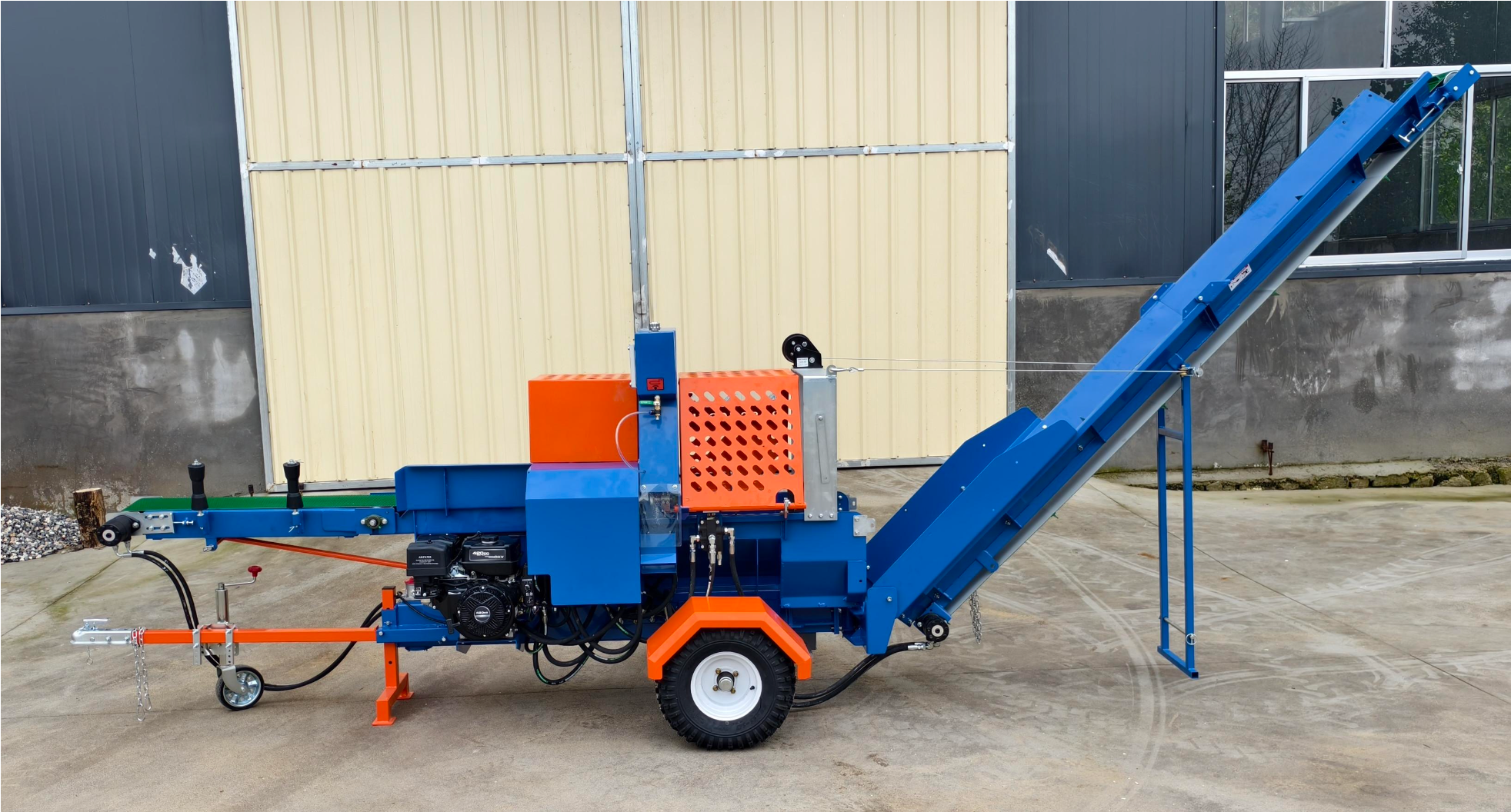

The FP-480FR – Full Hydraulic Firewood Processor
The FP-480FR delivers the same proven hydraulic performance as the FP-480FE in a bold blue and orange finish. Featuring a single integrated hand-lever for wood clamping, sawing, and splitting, it combines ease of use with fast 6-second cycle times. Available with a 15HP gasoline engine or electric motor.
Key Features

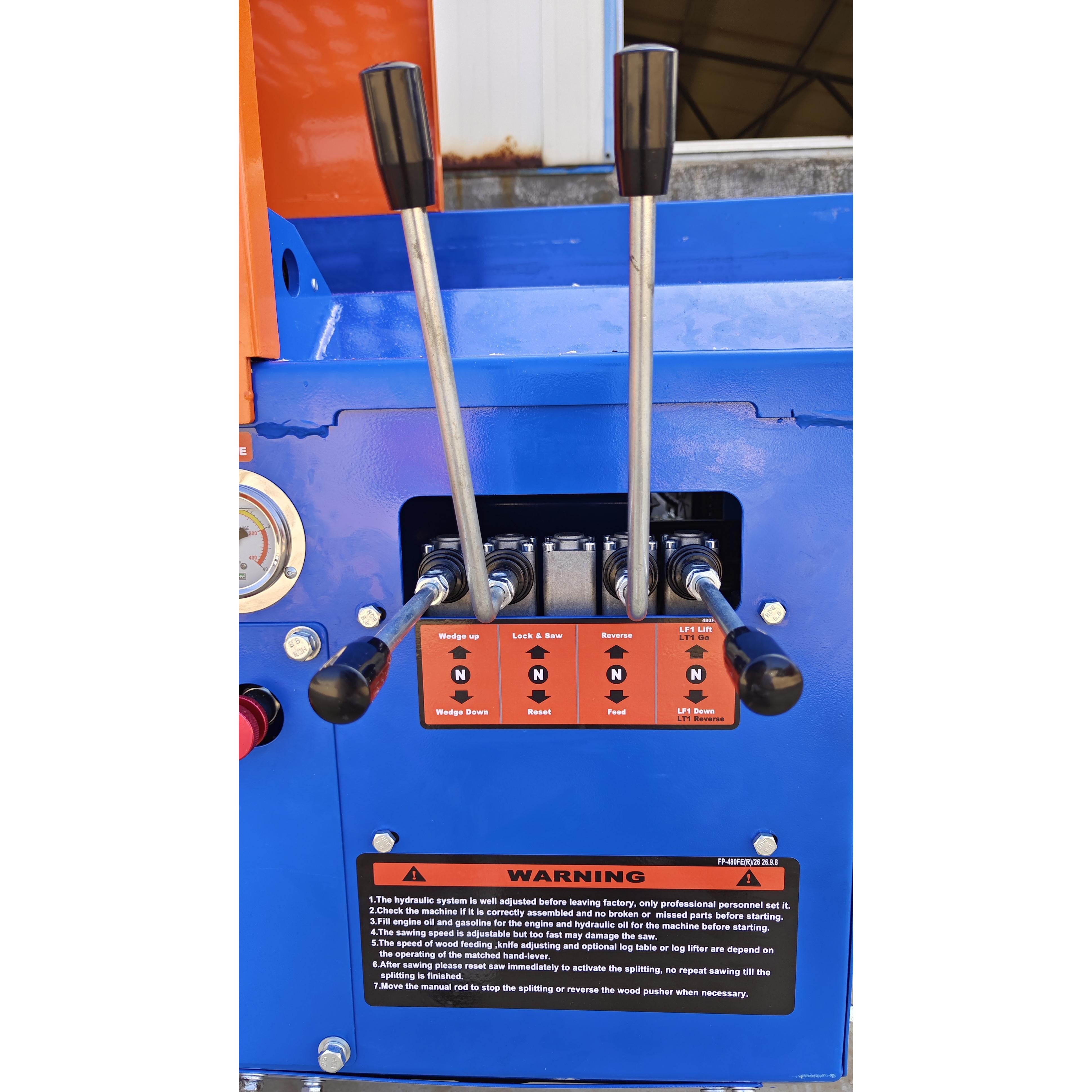

- ONE hand-lever integrates wood fixing and sawing — pull to the end without risk of damage or stalling
- Hydraulic-powered saw with adjustable speed via knob

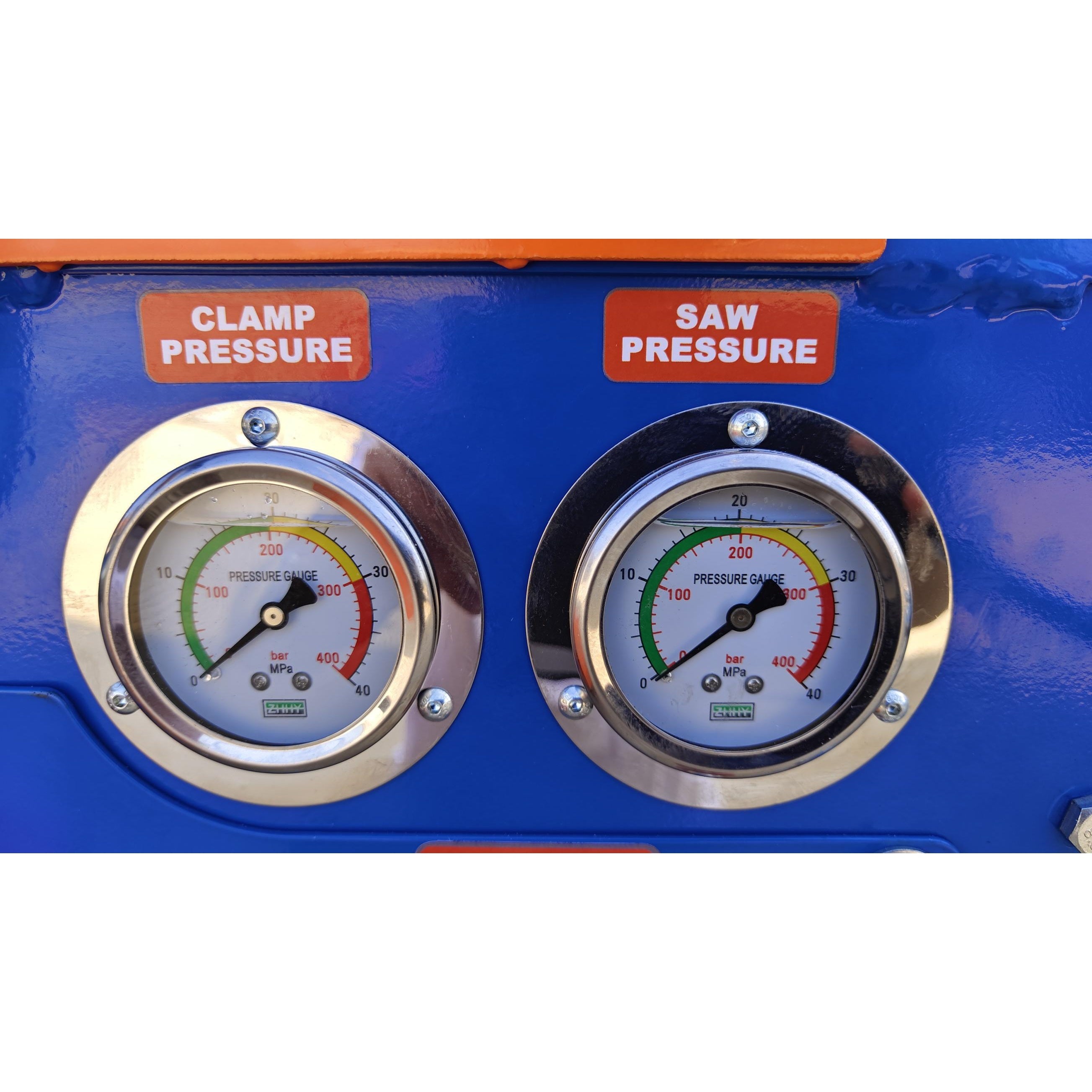

- Dual hydraulic gauges monitoring saw pressure and clamping pressure in real time
- High-efficiency gear pump and saw motor for fast 6-second cycle time
- 4-way height-adjustable splitting wedge
- Automatic splitting and saw lubrication

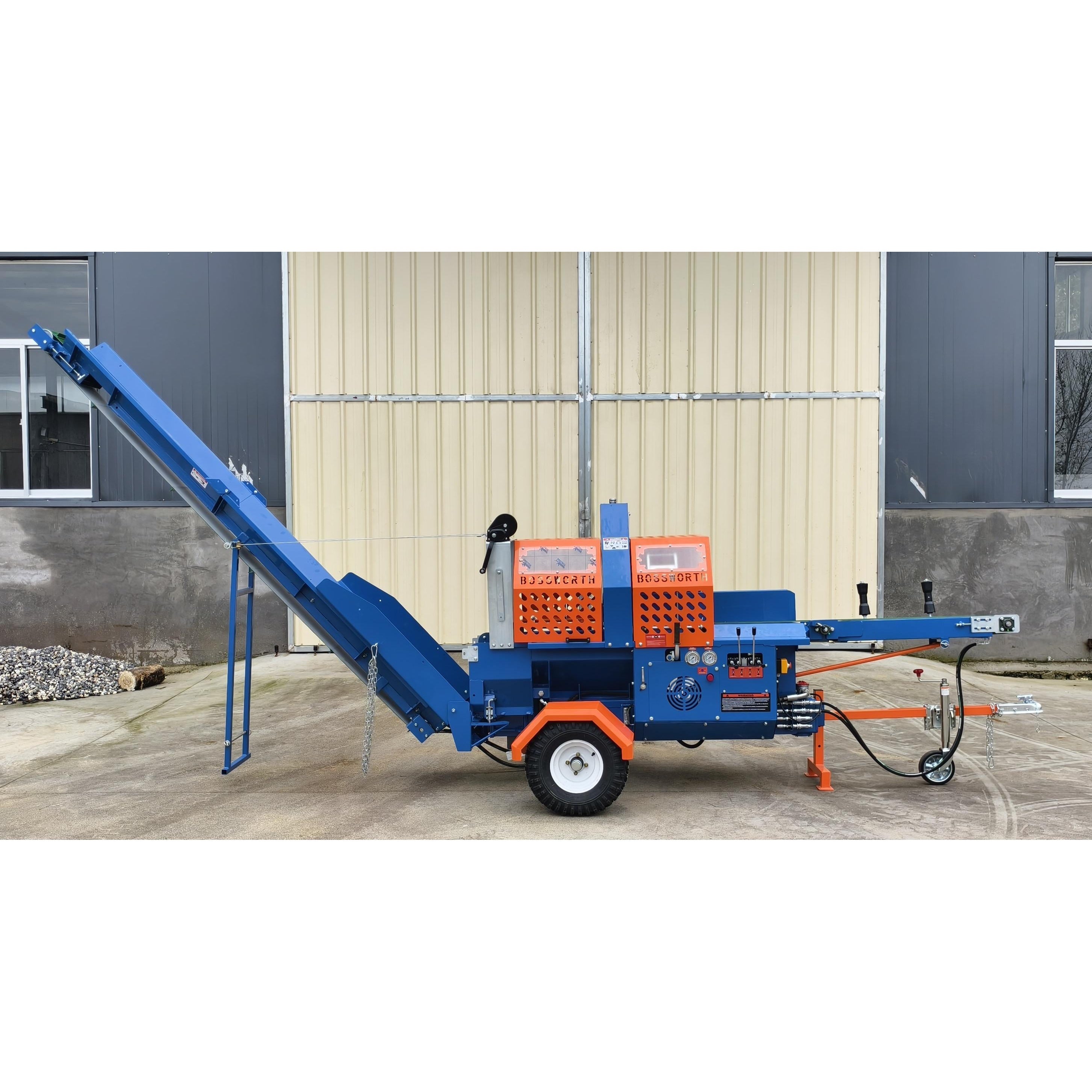

- Feeding conveyor (2400×200mm) + rear loading conveyor (3200×250mm)
- Towable with 50mm ball coupler
- National patent awarded
Specifications
| Max Splitting Power | 12/20T |
| Max Log Diameter | 480mm (19 inch) |
| Max Splitting Length | 610mm (24 inch) |
| Cycle Time | 6 seconds |
| Work Efficiency | 4–7 CBM/H |
| Wood Fixing | Hydraulic |
| Saw Cutting | Joystick |
| Splitting Wedge | 4-way (height adjustable) |
| Pump | 16.5 GMP (2-stage) |
| Hydraulic Oil Tank | 48L |
| Weight | 860 kg (1,896 lbs) |
| Tires | 22×11-10 |
Shipping & Delivery
This machine ships internationally from our manufacturing facility. Please contact us before placing your order so we can provide you with an accurate shipping quote and estimated delivery timeline to your location. Our team typically responds within 24 hours.
