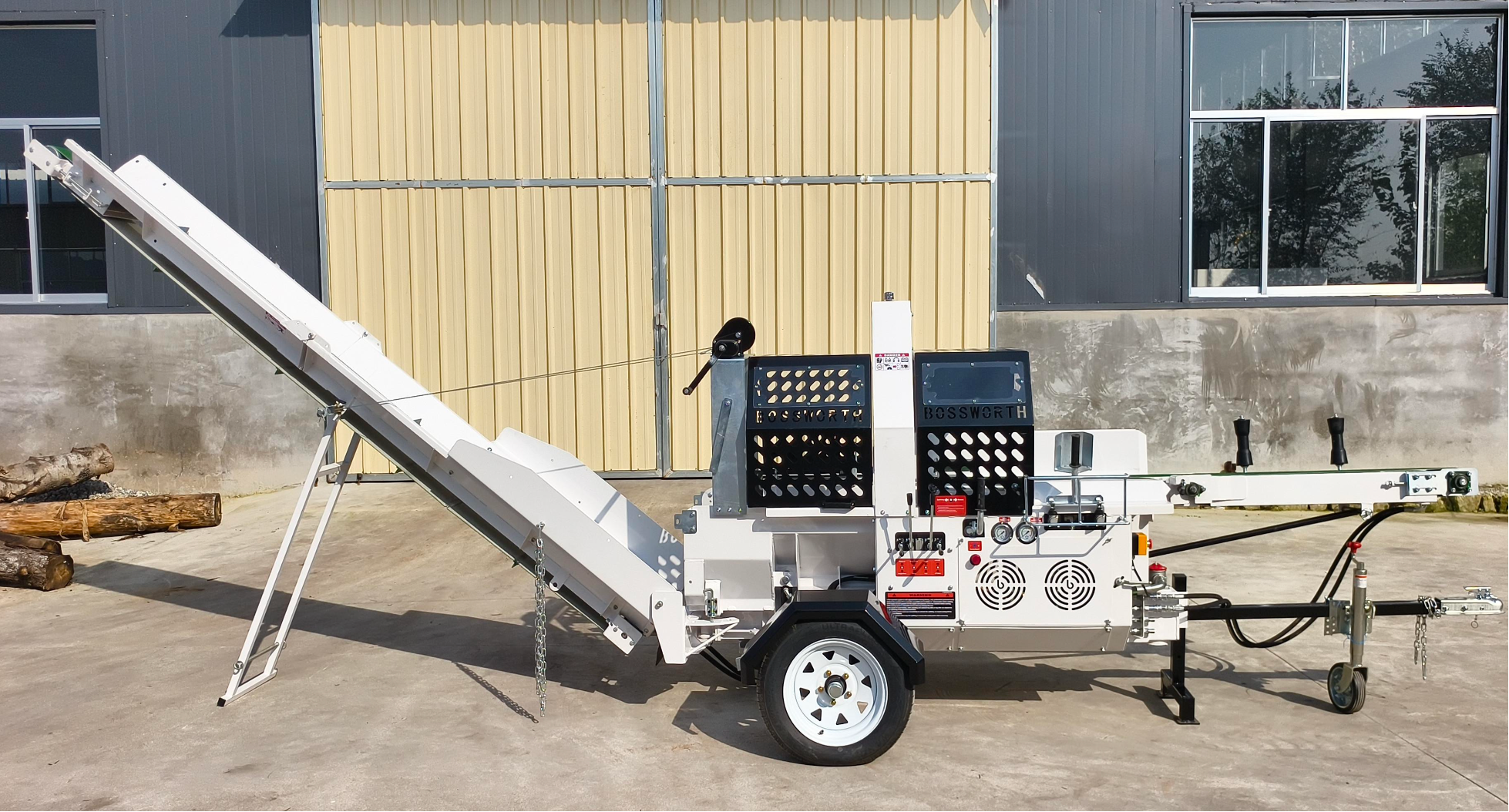

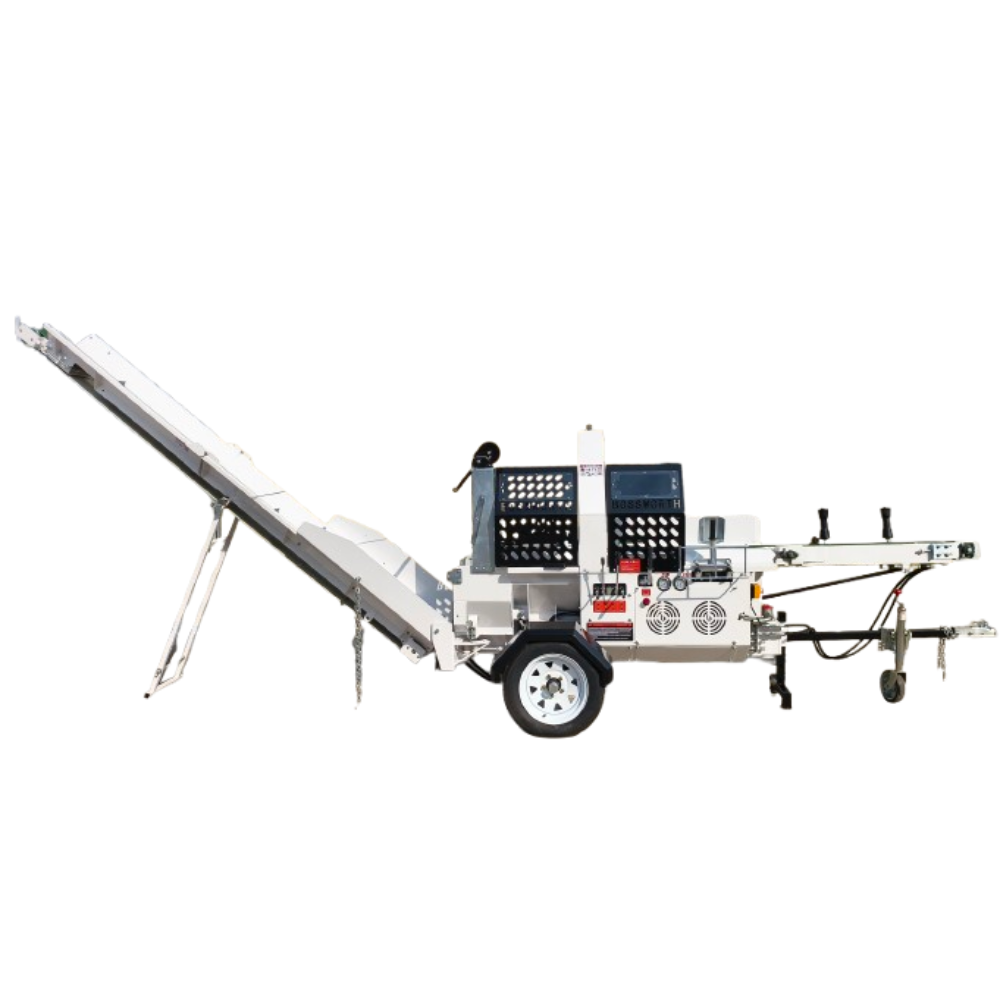

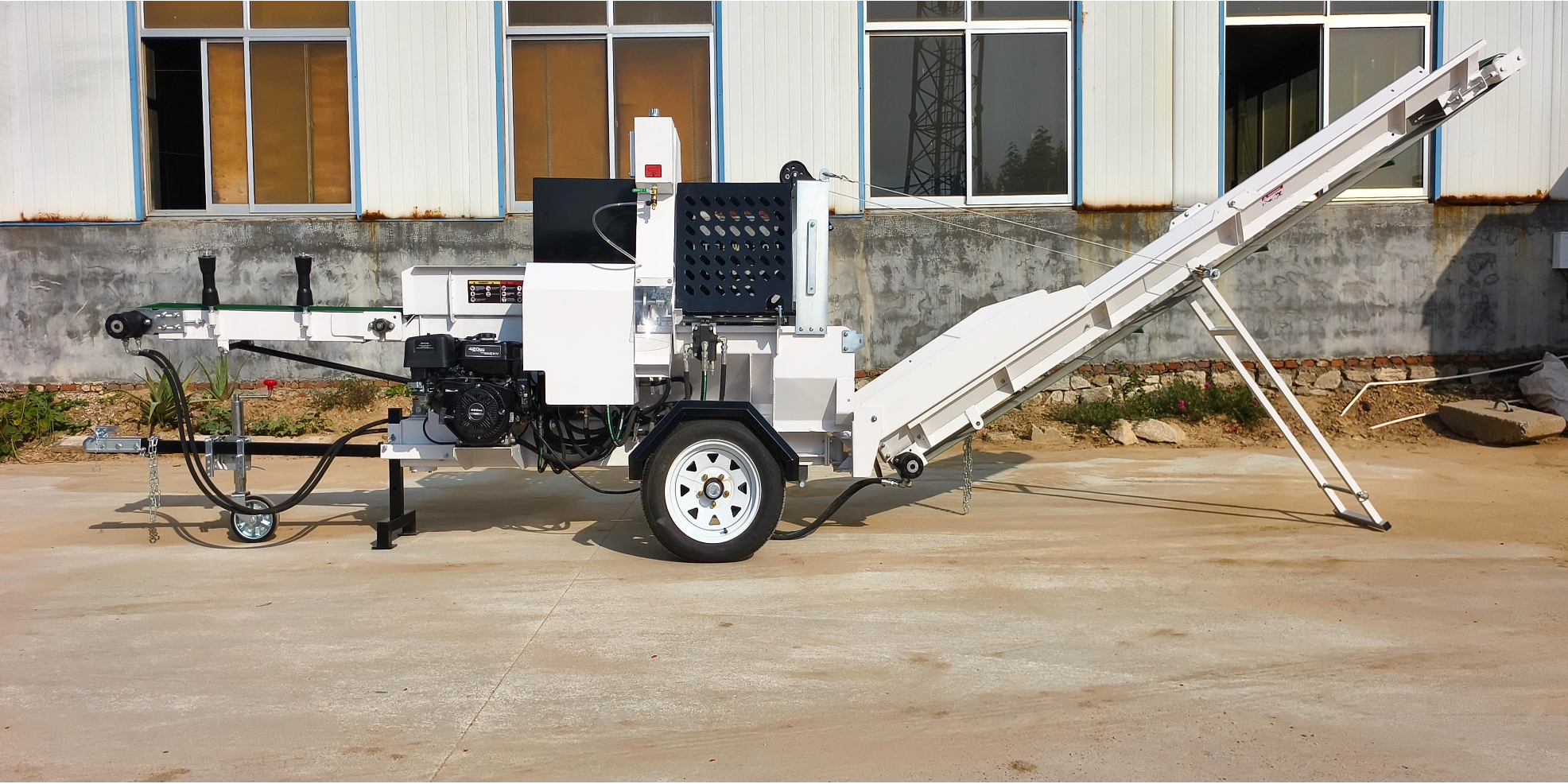

The FP-480FE – Full Hydraulic Firewood Processor
The FP-480FE is a fully hydraulic firewood processor designed for serious firewood producers. With ONE integrated hand-lever controlling wood clamping, sawing, and splitting, it builds instant muscle memory and dramatically reduces operator fatigue. Available with a 15HP gasoline engine or electric motor.
Key Features

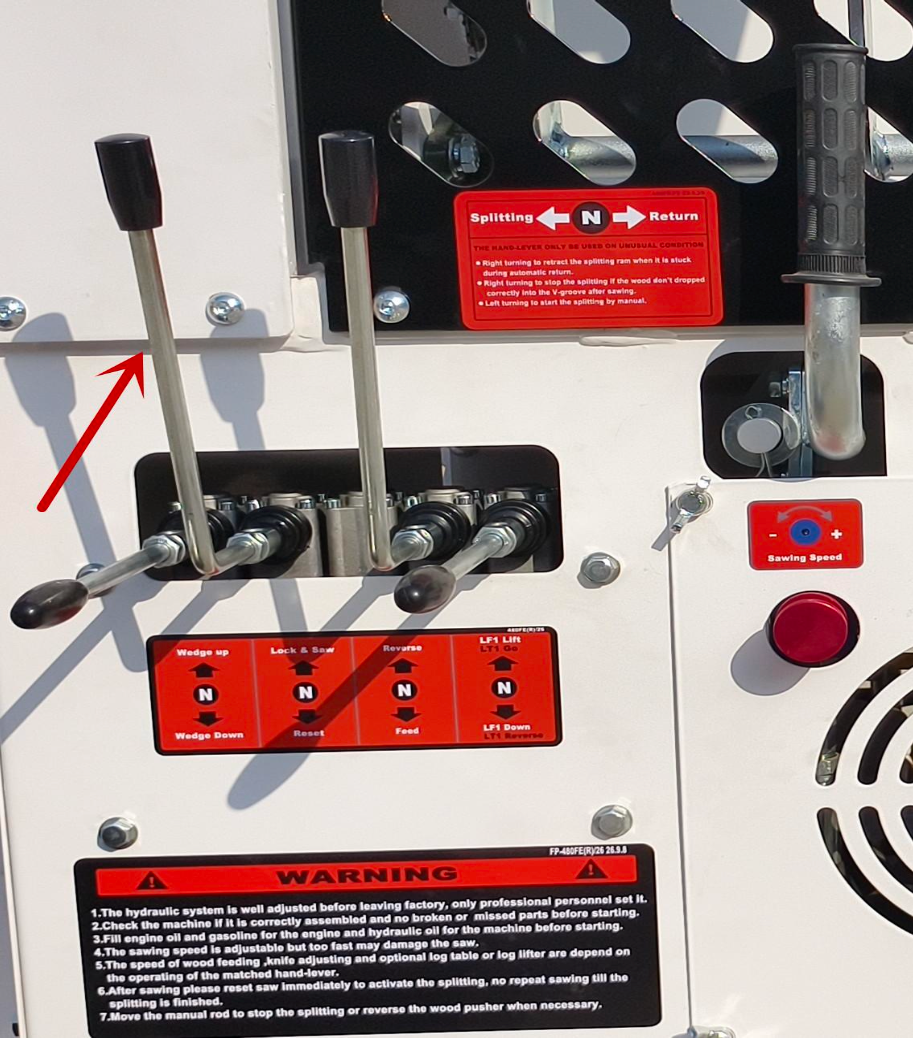

- ONE hand-lever integrates wood fixing and sawing — pull to the end without risk of damage or stalling

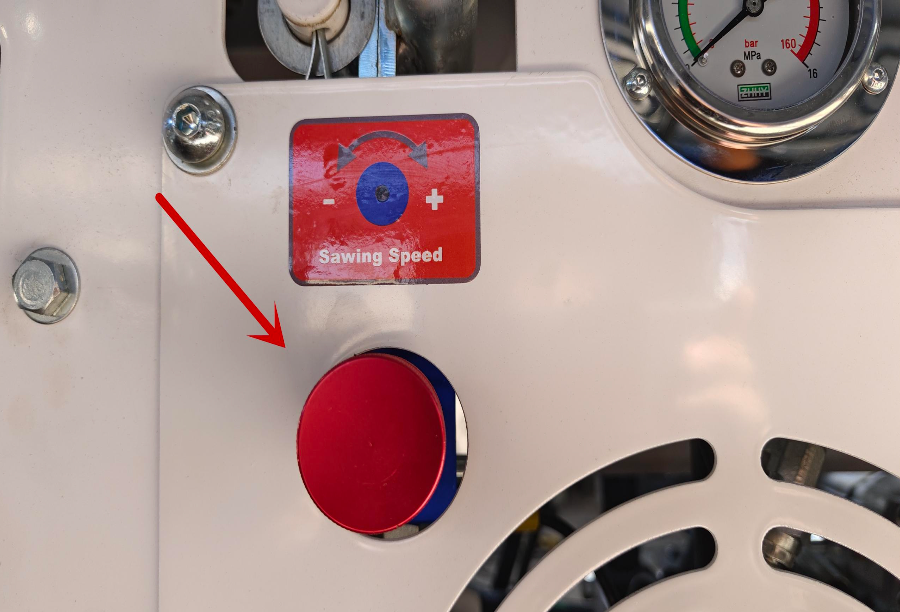

- Hydraulic-powered saw with adjustable speed via knob (superior to air pressure systems)

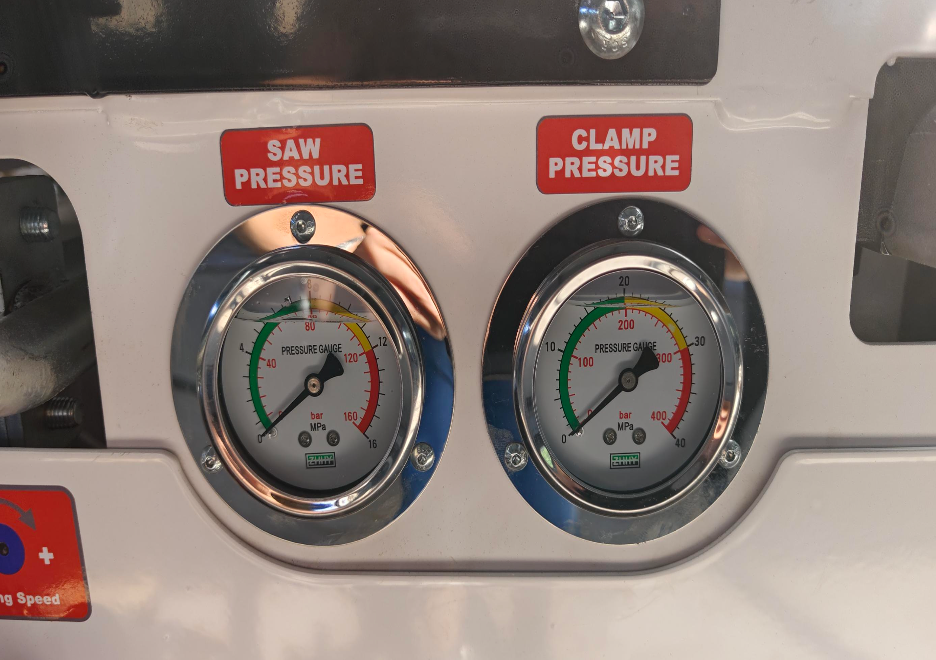

- Dual hydraulic gauges monitoring saw pressure and clamping pressure in real time
- High-efficiency gear pump and saw motor for fast 6-second cycle time
- 4-way height-adjustable splitting wedge
- Automatic splitting and saw lubrication
- Feeding conveyor (2400×200mm) + rear loading conveyor (3200×250mm)
- Towable with 50mm ball coupler
- National patent awarded
Specifications
| Max Splitting Power | 12/20T |
| Max Log Diameter | 480mm (19 inch) |
| Max Splitting Length | 610mm (24 inch) |
| Cycle Time | 6 seconds |
| Work Efficiency | 4–7 CBM/H |
| Wood Fixing | Hydraulic |
| Saw Cutting | Joystick |
| Splitting Wedge | 4-way (height adjustable) |
| Pump | 16.5 GMP (2-stage) |
| Hydraulic Oil Tank | 48L |
| Weight | 860 kg (1,896 lbs) |
| Tires | 22×11-10 |
Shipping & Delivery
This machine ships internationally from our manufacturing facility. Please contact us before placing your order so we can provide you with an accurate shipping quote and estimated delivery timeline to your location. Our team typically responds within 24 hours.
📩 Contact us via the chat button on this page or email us at sales@forestprogear.com
Description & Shipping
The FP-480FE – Full Hydraulic Firewood Processor
The FP-480FE is a fully hydraulic firewood processor designed for serious firewood producers. With ONE integrated hand-lever controlling wood clamping, sawing, and splitting, it builds instant muscle memory and dramatically reduces operator fatigue. Available with a 15HP gasoline engine or electric motor.
Key Features
- ONE hand-lever integrates wood fixing and sawing — pull to the end without risk of damage or stalling
- Hydraulic-powered saw with adjustable speed via knob (superior to air pressure systems)
- Dual hydraulic gauges monitoring saw pressure and clamping pressure in real time
- High-efficiency gear pump and saw motor for fast 6-second cycle time
- 4-way height-adjustable splitting wedge
- Automatic splitting and saw lubrication
- Feeding conveyor (2400×200mm) + rear loading conveyor (3200×250mm)
- Towable with 50mm ball coupler
- National patent awarded
Specifications
| Max Splitting Power | 12/20T |
| Max Log Diameter | 480mm (19 inch) |
| Max Splitting Length | 610mm (24 inch) |
| Cycle Time | 6 seconds |
| Work Efficiency | 4–7 CBM/H |
| Wood Fixing | Hydraulic |
| Saw Cutting | Joystick |
| Splitting Wedge | 4-way (height adjustable) |
| Pump | 16.5 GMP (2-stage) |
| Hydraulic Oil Tank | 48L |
| Weight | 860 kg (1,896 lbs) |
| Tires | 22×11-10 |
Shipping & Delivery
This machine ships internationally from our manufacturing facility. Please contact us before placing your order so we can provide you with an accurate shipping quote and estimated delivery timeline to your location. Our team typically responds within 24 hours.
📩 Contact us via the chat button on this page or email us at sales@forestprogear.com
