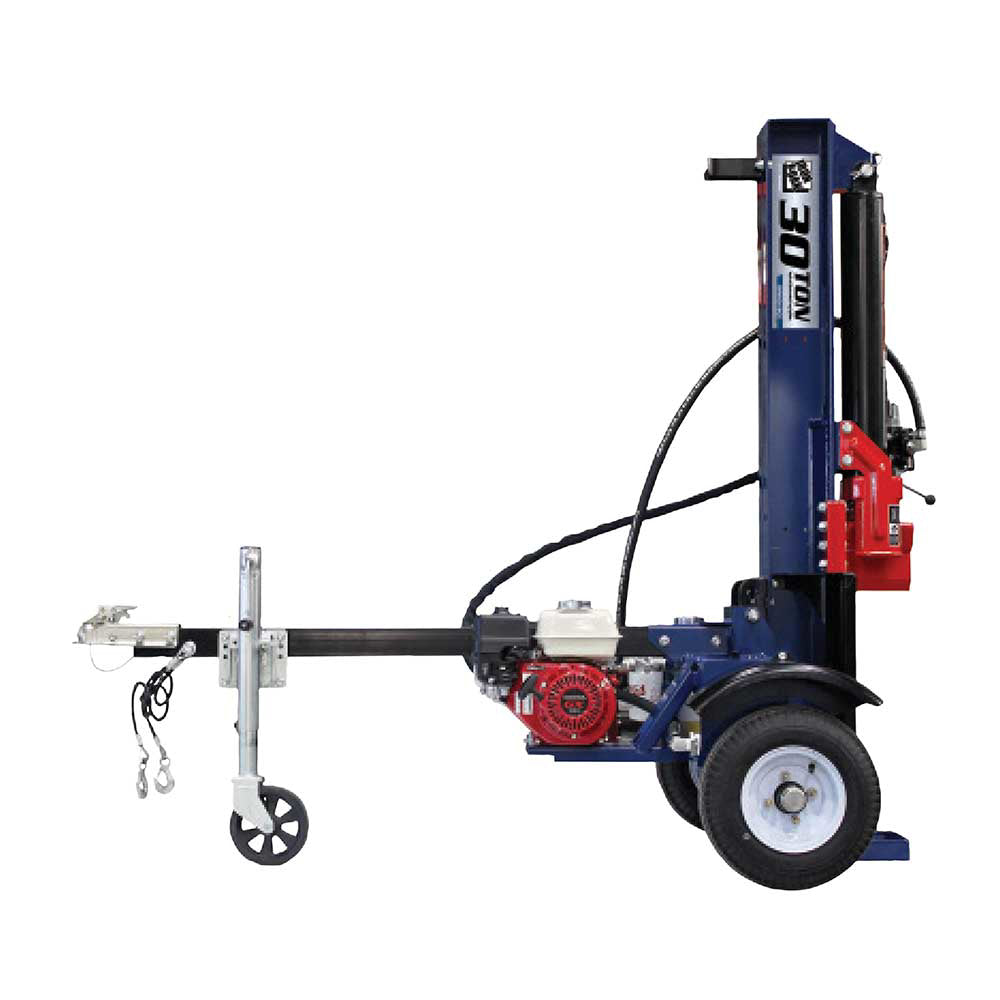

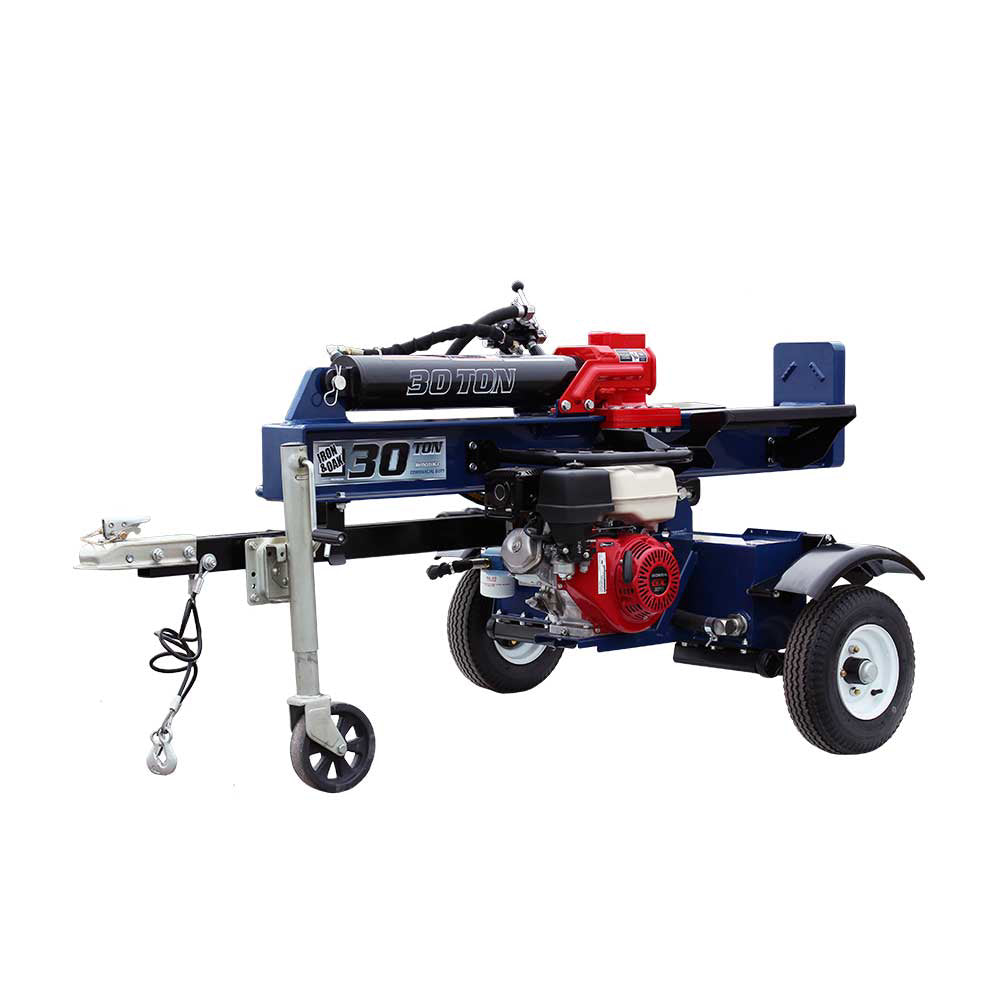

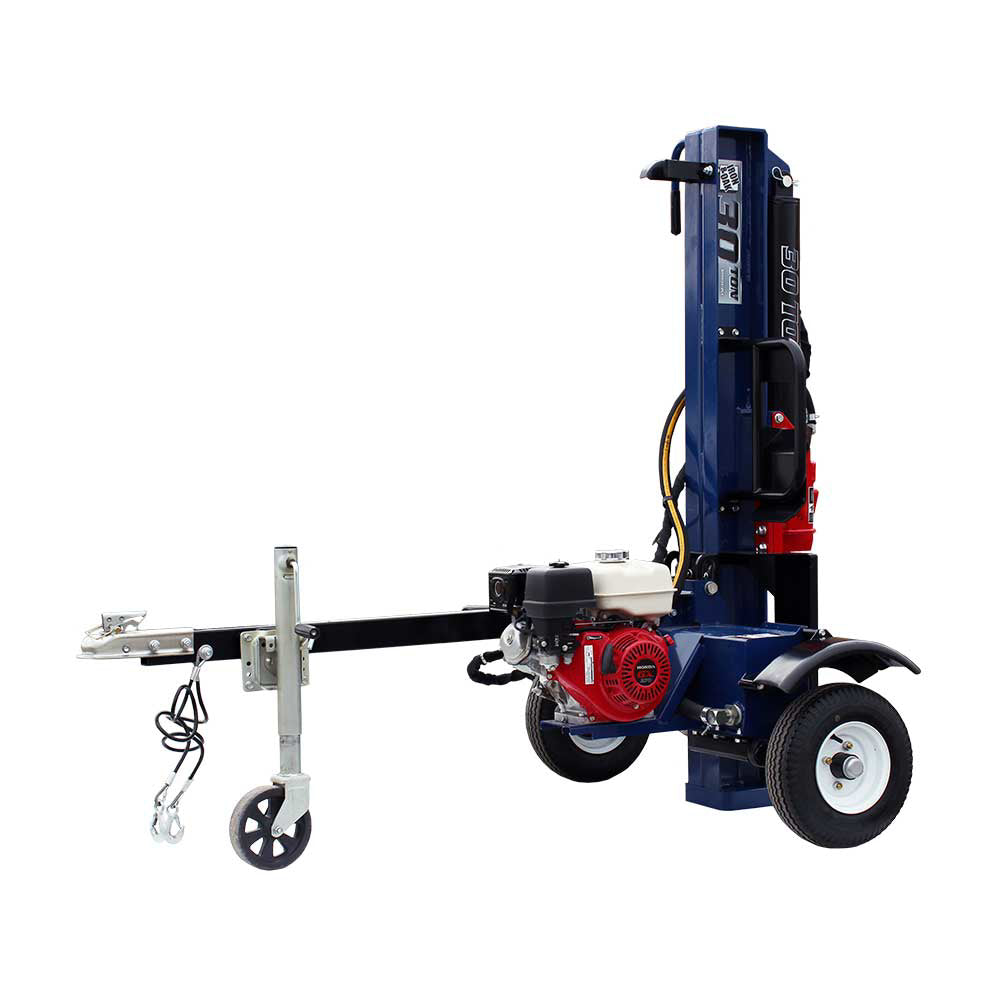

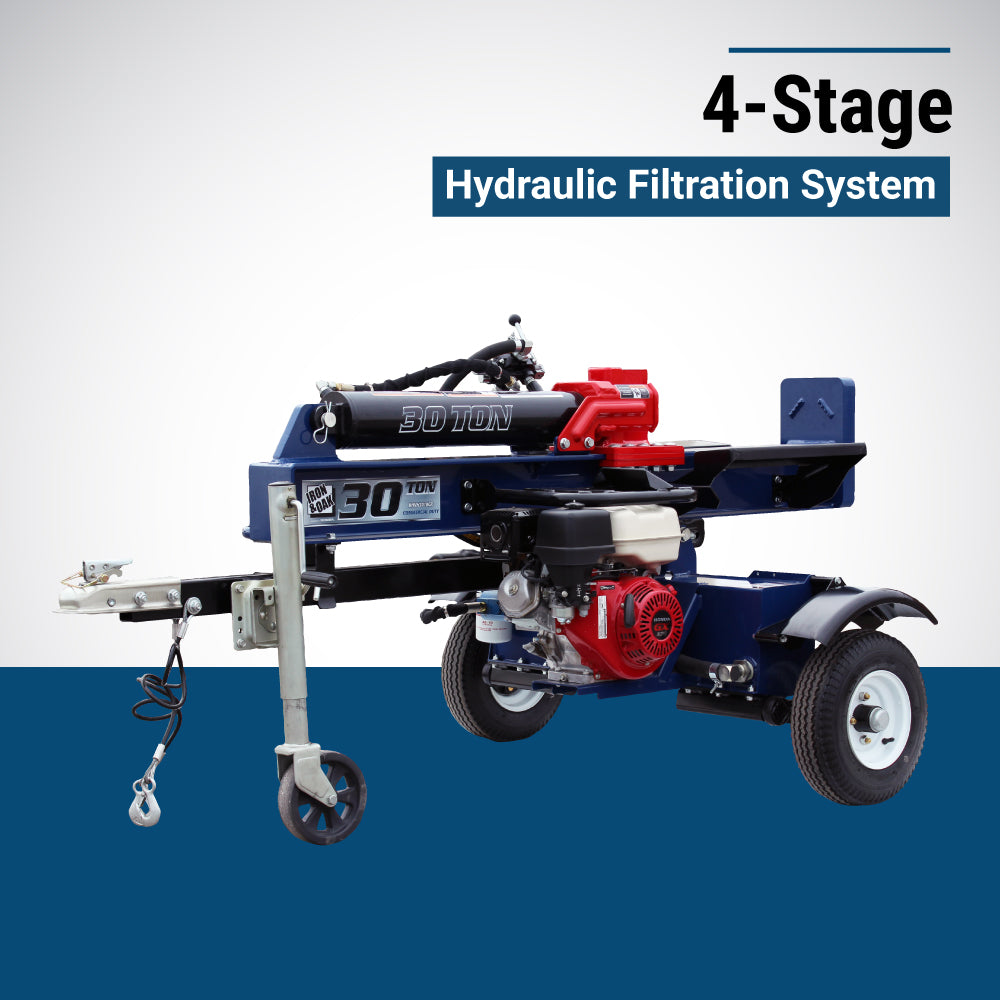

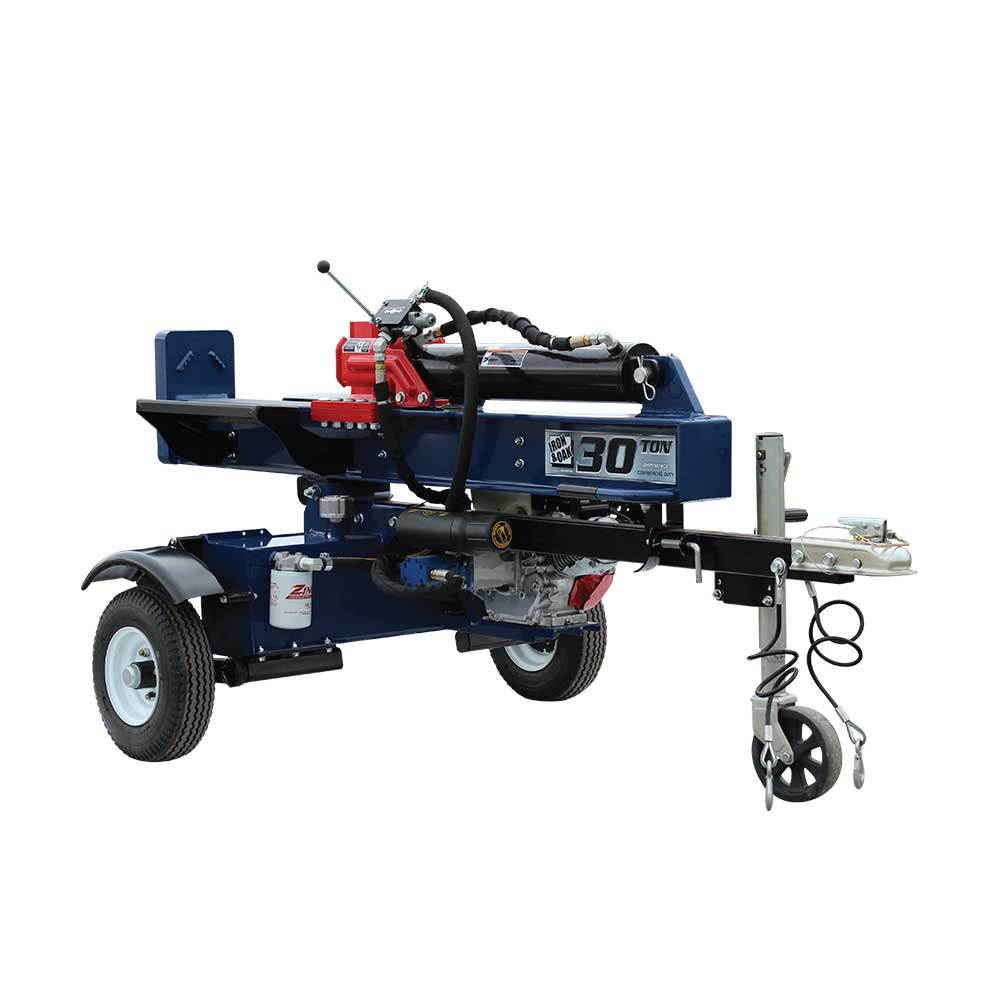

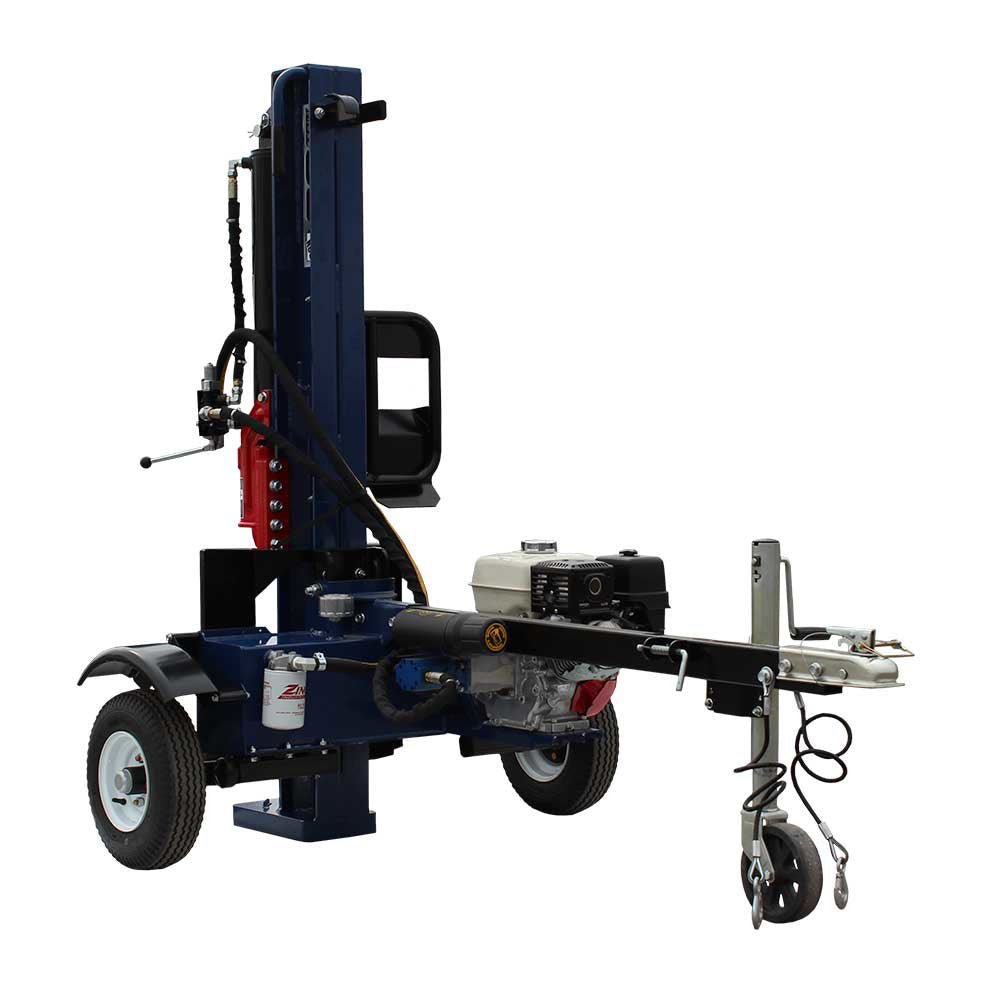

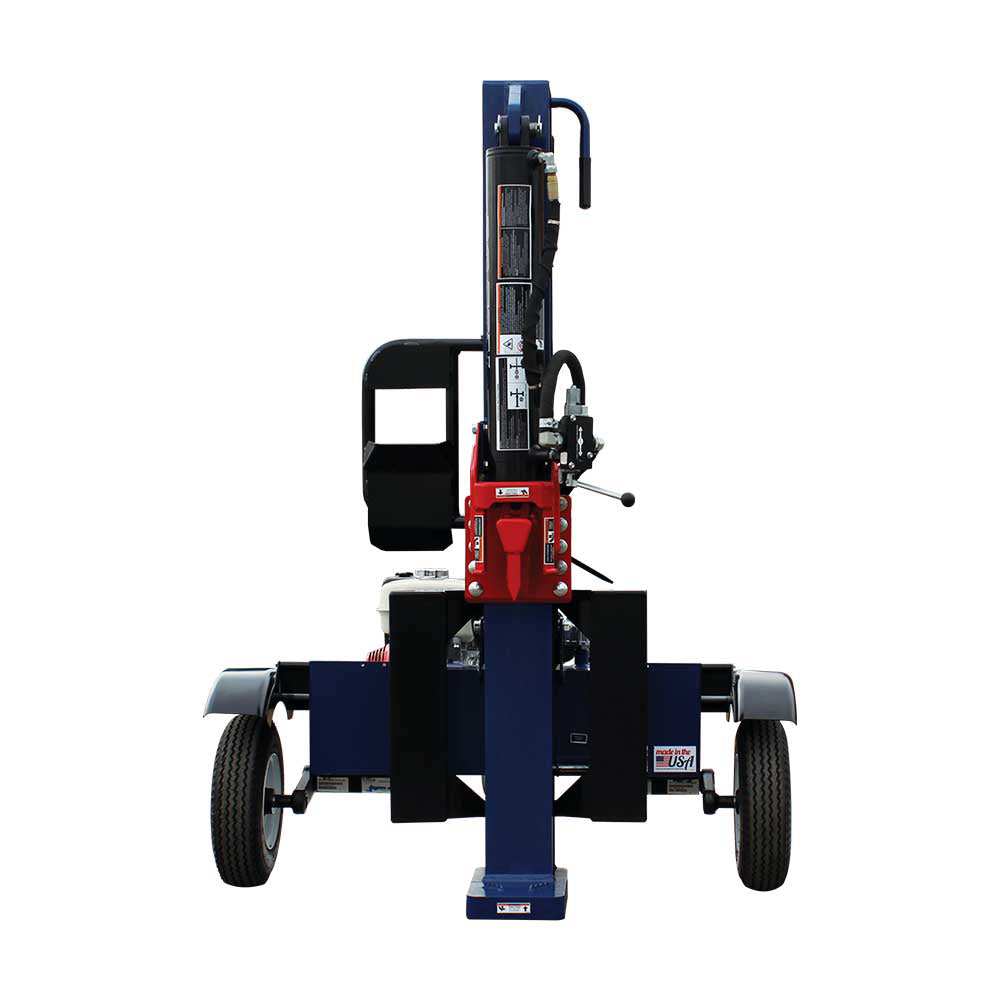

The Iron & Oak BHVH3018GX steps up to 30 tons of splitting force with a Honda GX270, 16 GPM Hi-Lo 2-stage pump, and 4.5 in. x 24 in. cylinder — all in a Made in the USA tow-behind package. At 705 lbs. dry weight with a 10.5-gallon hydraulic system, 12-second cycle time, and 32-inch splitting height, this is Iron & Oak's heavy-duty commercial tow-behind splitter built for operators who need sustained output on large hardwood volumes.
Specifications
- Equipment Type: Log Splitter (Tow-Behind)
- Splitting Force: 30 tons

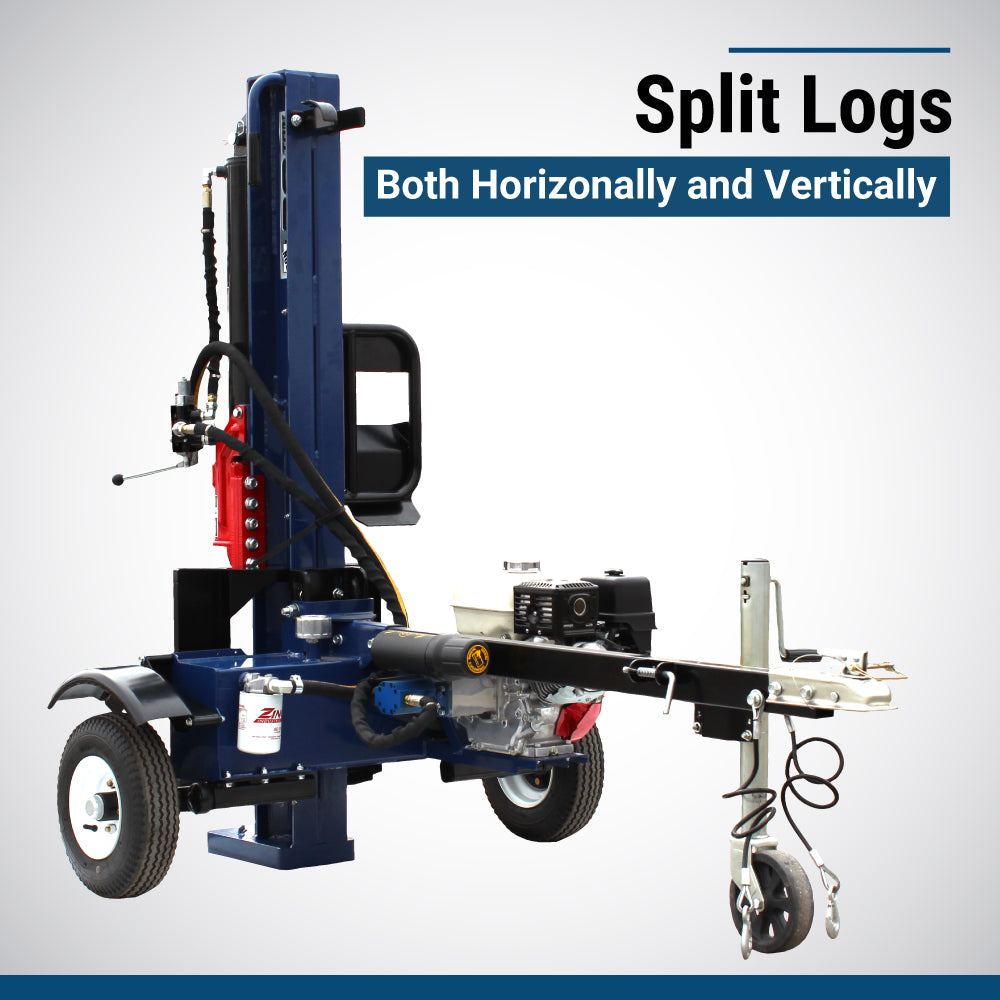

- Operation: Horizontal and Vertical
- Engine: Honda GX270 — 270cc displacement
- Cycle Time: 12 seconds
- Pump: 16 GPM Hi-Lo 2-stage
- Cylinder: 4.5 in. x 24 in. clevis type, 1.75-in. rod

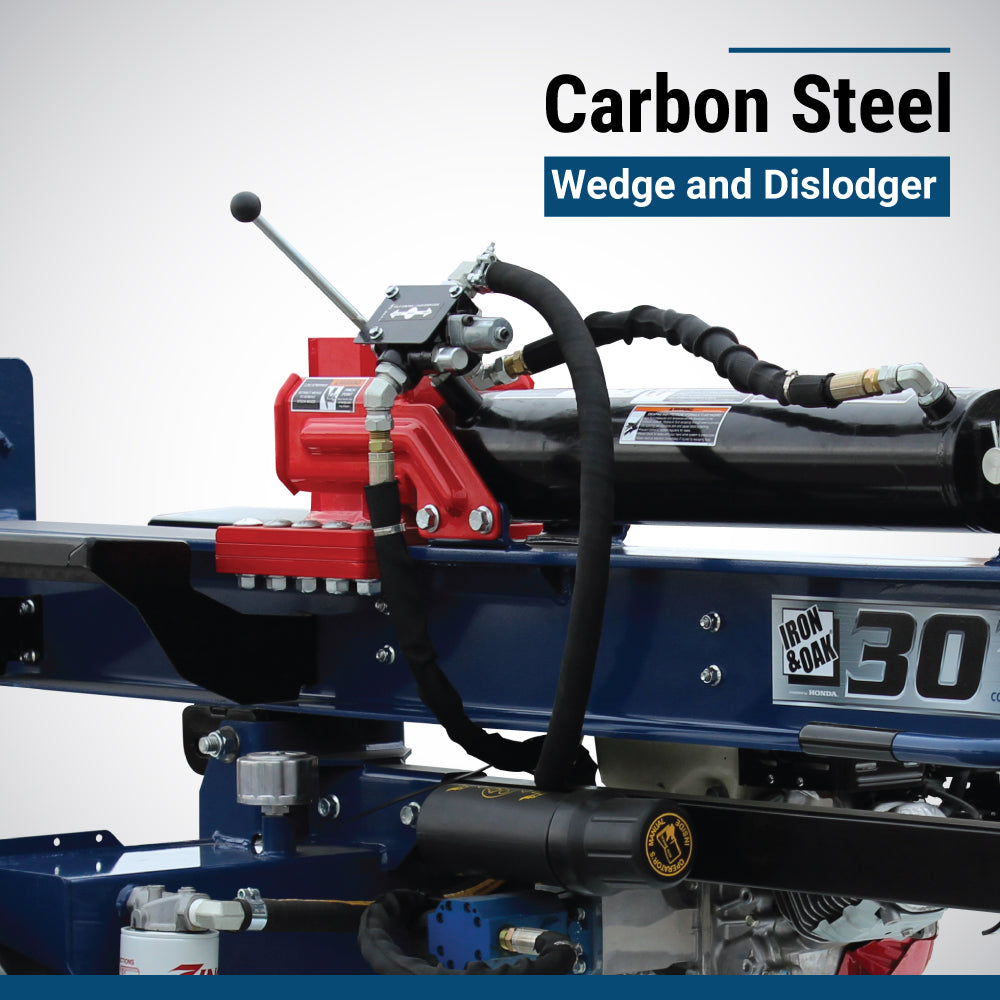

- Wedge: Heavy-duty, 5 bolts per side
- Splitting Height: 32 in.
- Max Log Length: 25 in.
- Hydraulic Capacity: 10.5 gal. system total (9 gal. tank)
- Hitch: 2 in. ball
- Tires: 4.8 in. x 8.0 in. highway rated
- Dry Weight: 705 lbs.
- Country of Origin: Made in the USA (with US and imported components)
- SKU: BHVH3018GX
30 Tons — 12-Second Cycle Time
The BHVH3018GX posts a 12-second cycle time — faster than the 13-14 second cycles on the BravePro 30-ton lineup. The combination of the Honda GX270, 16 GPM Hi-Lo pump, and 4.5-inch cylinder generates 30 tons of splitting force with faster hydraulic recovery between cycles. For a commercial firewood producer running multiple cords per day, 1-2 seconds per cycle adds up to significant additional throughput over a full splitting session.
Made in the USA — Heavier Build Spec
At 705 lbs. dry weight — 175 to 180 lbs. heavier than comparable BravePro 30-ton units — the BHVH3018GX is built with more steel throughout. The 10.5-gallon hydraulic system runs cooler under sustained load compared to 8.5-9 gallon systems, reducing heat-related viscosity loss and maintaining consistent performance through long splitting sessions. Heavy-duty 5-bolt wedge design resists movement under repeated full-force impacts.
Hi-Lo 2-Stage Pump + Offset Valve
The 16 GPM Hi-Lo 2-stage pump delivers high flow for fast cylinder extension, then automatically shifts to high pressure at contact for maximum splitting force. More efficient than standard 2-stage designs — shorter cycle times at lighter loads, full 30-ton force on demand. Offset valve positions the control ergonomically out of the operator's direct line for comfortable operation during extended sessions.
Auto Latch + Commercial Features
Auto latch beam lock secures the beam in horizontal position for safe towing — no manual pin required. Enhanced handle for horizontal-to-vertical transitions. Halite commercial cylinder seals. Log dislodger and log cradle standard. Larger jack wheel for easier positioning. Tow cables included.
Free Shipping — No Sales Tax
Ships free to the continental United States. No sales tax on your order. Contact us before placing your order to confirm availability and arrange freight delivery to your location.
